Page 31 - GOODYEAR RUBBER PRODUCTS INC 1-866-711-4673 Snaptite Municipal Fire Hose Catalog

6D
Performance Features:

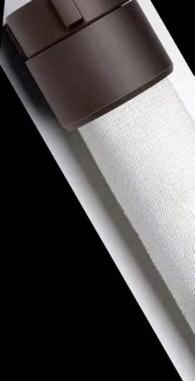

National 6D hose is designed almost identically to our type
8D hose but for lower operating pressures at 275 psi (1895 kPa)
maximum. When the pressures are lower and the economics
demand consideration, this double jacketed, rubber lined hose
can’t be beat. Brass or aluminum couplings available.
As an added benefit, most sizes of type 6D are UL listed or FM
approved and can be labeled if required.
Part Number Example: 6D30X50W25NUL = 6D Hose, 3” ID by 50’ Length, White, 2-1/2” Aluminum NH/NST
Threaded Coupling, UL Labeled
How to Order
6D 30X50 W 25 N
6D 10 = 1” 50 = 50’ Y = Yellow 10 = 1” N = NH Blank= UL=UL Listed
15 = 1-1/2” 100 = 100’ R = Red 15 = 1-3/4” I = IPT Aluminum FM=Factory
17 = 1-3/4” W = White 25 = 2-1/2” Mutual
25 = 2-1/2” (Uncoated) 30 = 3” BR= Brass Rocker
30 = 3” 40 = 4” Lug
40 = 4” 60 = 6”
60 = 6” BP= Brass Pin Lug
UL
Mine Hose
Performance Features:
National 8M mine hose is a premium quality Neoprene rubber lined,
double jacket hose that has been MSHA (Mine Safety & Health
Administration) approved for use in any mine. The polyester outer
jacket protects the inner jacket and liner from wear and puncture
while also helping to prevent kinking that limits flow. Suitable for use
up to 360 psi (2480 kPa). Brass or aluminum couplings available.
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING
I.D. X LENGTH SIZE TYPE MATERIAL
Part Number Example: 8M15X50W15N = 8M Hose, 1-1/2” ID by 50’ Length, White, 1-1/2” Aluminum NH/NST
Threaded Coupling
How to Order
8M 15X50 W 15 N
8M 15 = 1-1/2” 50 = 50’ W = White 15 = 1-1/2” N = NH Blank=
17 = 1-3/4” 100 = 100’ (Uncoated) I = IPT Aluminum
BR= Brass
Rocker Lug
BP= Brass
Pin Lug
Construction:
Polyester Double Jacket
EPDM Rubber Inner Liner
Coating:
Optional Dura-Cote™
Temperature Range:
-40° to 150°F (-40° to 65°C)
Coupling: Aluminum or Brass
NH/NST or IPT Threaded
Approvals: Most sizes - UL Listed
(see chart below for specifics),
1-1/2”-FM Approved
Hose Colors:
LISTED
APPROVED
EPDM Rubber Liner
Polyester Inner Jacket
Polyester Outer Jacket
Neoprene Rubber Liner
Polyester Inner Jacket
Polyester Outer Jacket
Rubber Backing
PSI (kPa) PSI (kPa) PSI (kPa) LBS KG IN
1-1/2” 400 (2760) 800 (5515) 1200 (8275) 15 6.4 1-15/16
1-3/4” 400 (2760) 800 (5515) 1200 (8275) 16 7.3 2-3/16
SERVICE PROOF WEIGHT BOWL
SIZE BURST
TEST TEST SIZE (for 50’ coupled)
(for 50’ coupled)
Construction:
Polyester Double Jacket
Neoprene Rubber Liner
with Rubber Backing
Temperature Range:
-5° to 150°F (-20° to 65°C)
Coupling:
Aluminum or Brass NH/NST
or IPT Threaded
Approvals:
Mine Safety & Health
Administration (MSHA)
Approval, #2G-15-1
Hose Colors:
Polyester Double Jacket Hose
- Type 6D
Polyester Double Jacket Hose
- Type 8M
I -5
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING OPTIONS
I.D. X LENGTH SIZE TYPE MATERIAL
SERVICE PROOF WEIGHT BOWL Certification SIZE BURST
TEST TEST SIZE Available
Operating Pressure not to Exceed 90% of Service Test Pressure
Operating Pressure not to Exceed 90% of Service Test Pressure
PSI (kPa) PSI (kPa) PSI (kPa) LBS KG IN
1” 300 (2070) 600 (4140) 900 (6200) 12 6.4 1-1/2
1-1/2” 300 (2070) 600 (4140) 900 (6200) 14 6.4 1-15/16 UL, FM
1-3/4” 300 (2070) 600 (4140) 900 (6200) 16 7.3 2-3/16 UL
2-1/2” 300 (2070) 600 (4140) 900 (6200) 25 11.8 3 UL
3” 300 (2070) 600 (4140) 900 (6200) 37 16.8 3-17/32 UL
4” 300 (2070) 600 (4140) 900 (6200) 70 31.8 4-17/32
6” 200 (1380) 400 (2760) 600 (4140) 100 45.4 6-3/4
