Page 30 - GOODYEAR RUBBER PRODUCTS INC 1-866-711-4673 Snaptite Municipal Fire Hose Catalog

8D

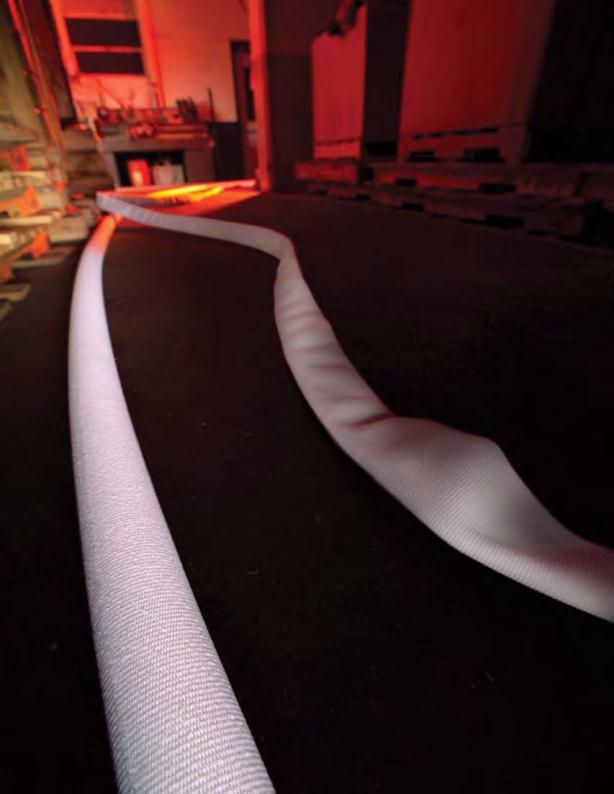

Polyester Double Jacket Hose

8D hose is a premium quality, industrial grade, double jacket hose with a

lightweight EPDM (Ethylene Propylene Diene Monomer) rubber liner that has a

maximum operating pressure of 375 psi (2585 kPa). The outside jacket utilizes a

tight weave that is less likely to “catch” while dragging through the work site and

also helps to reduce kinking at low pressures, keeping the flow constant.

The EPDM liner is inert to most chemicals, is inherently ozone resistant and won’t

degrade or crack. 8D also has a wide temperature range and is capable of being

used at a mine in Alaska or a construction site in Arizona.

For the ultimate in durability, add our optional Dura-Cote™ colorized abrasion

resistant protection for superior mildew resistance while at the same time

preventing water pick-up.

Properties and Construction

• Traditional double jacket, rubber lined industrial hose made from high tensile

strength polyester yarn with a lining of extruded EPDM.

• Optional Dura-Cote™ treatment greatly increases abrasion, heat, flame and

petrochemical resistance while virtually eliminating water pick-up. When treated,

8D is protected from mildew and no drying is required.

• Hose remains flexible to temperatures as low as -40°F (-40°C) and is resistant

to ozone, oxidation and most chemicals or petroleum products.

• Available with aluminum NST or IPT threaded couplings.

• Excellent for tough applications such as construction sites, mines and industrial

firefighting.

• National Fire Hose 8D is manufactured within our ISO-9001: 2000 certified

quality assurance system.

TYPE

HOSE

COLOR

COUPLING

THREAD

COUPLING

I.D.

X LENGTH

SIZE

TYPE

MATERIAL

Part Number Example:

8D17X50Y15N

= 8D Hose, 1-3/4” ID by 50’ Length, Yellow, 1-1/2” Aluminum NH/NST

Threaded Coupling

How to Order

8D

17X50

Y

15

N

8D

10 = 1”

50 = 50’

Y = Yellow

10 = 1”

N = NH

Blank=

15 = 1-1/2”

100 = 100’

R = Red

15 = 1-1/2”

I = IPT

Aluminum

17 = 1-3/4”

B = Blue

20 = 2”

O = Orange

25 = 2-1/2”

G = Green

30 = 3”

T = Tan

W = White

(Uncoated)

Construction:

Polyester Double Jacket

EPDM Rubber Inner Liner

Temperature Range:

-40° to 150°F (-40° to 65°C)

Couplings Available:

Aluminum NH/NST

or IPT Threaded

Hose Colors:

-

Type 8D

I-4

SIZE

SERVICE

PROOF

BURST

WEIGHT

FLAT

HOSE BED

BOWL

TEST

(For 50’ Coupled)

WIDTH

Volume (100’)

SIZE

PSI (kPa)

LBS (KG)

IN

FT 3

IN

1”

400 (2760)

800 (5515)

1200 (8275)

13 (5.9)

2.10

1.0

1-1/2

1-1/2”

400 (2760)

800 (5515)

1200 (8275)

16 (7.3)

2.80

1.0

1-15/16

1-3/4”

400 (2760)

800 (5515)

1200 (8275)

17 (7.7)

3.20

1.5

2-3/16

2”

400 (2760)

800 (5515)

1200 (8275)

22 (10)

3.70

1.5

2-1/2

2-1/2”

400 (2760)

800 (5515)

1200 (8275)

28 (12.7)

4.50

2.0

3

3”

400 (2760)

800 (5515)

1200 (8275)

39 (17.7)

5.30

3.0

3-17/32

Operating Pressure not to Exceed 90% of Service Test Pressure

EPDM Rubber Liner

Polyester Inner Jacket

Polyester Outer Jacket
