Triple Poly - Type TP
Large Diameter Polyester Double Jacket Supply Hose
Polyurethane Liner
Polyester Inner Jacket
Polyester Outer Jacket
TYPE HOSE HOSE COLOR COUPLING THREAD COUPLING
I.D. X LENGTH SIZE TYPE MATERIAL
Part Number Example: TP40X50Y40S = TP Triple Poly Hose, 4” ID by 50’ Length, Yellow, 4” Aluminum Storz
Coupling
How to Order
TP 40X50 Y 40 S
TP 40 = 4” 50 = 50’ Y = Yellow 40 = 4” N = NH Blank=
50 = 5” 100 = 100’ R = Red 45 = 4-1/2” I = IPT Aluminum
B = Blue 50 = 5” S = Storz
O = Orange
G = Green
T = Tan
W = White
(Uncoated)

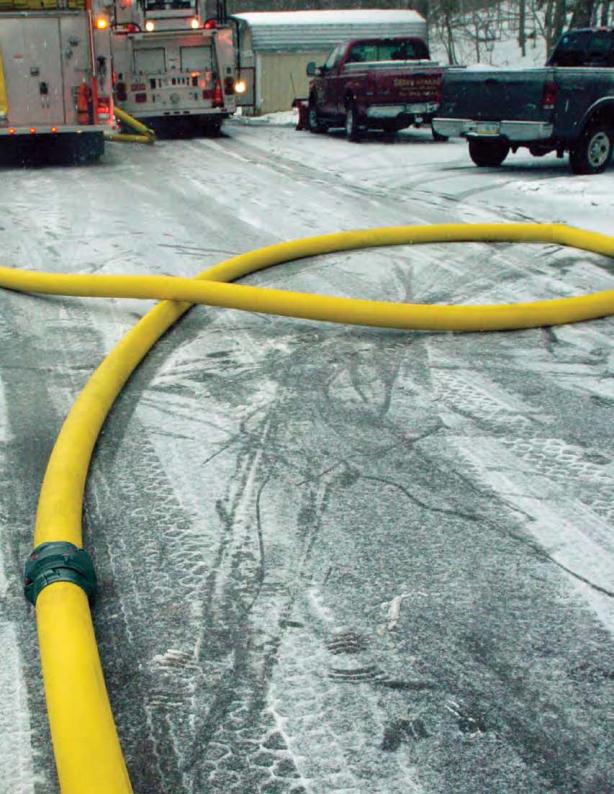

Looking for a polyurethane lined, polyester jacketed, all synthetic large diameter
hose? National Fire Hose Triple Poly gives you that alternative. Lighter than rubber
lined hose, Triple Poly is easy to handle and tough to the extreme. Its high tensile
strength polyester outer jacket, coated with our exclusive Dura-Cote™ abrasion
resistant treatment provides the durability you need. Our reverse twill woven
inner jacket and polyurethane liner insure a smooth waterway as compared to
traditionally woven hose and keeps friction loss low.
Should you desire reduced friction loss, an upgraded design with similar materials
or if you need the optional identification stripes, take some time to review the
Ponn Conquest specifications on pages M-4 and M-5.
Properties and Construction
• Triple Poly is a large diameter, double jacket municipal fire hose with both
jackets made from 100% high strength, low stretch, polyester along
with a lining of thermoplastic polyurethane for reduced weight and high
flow rates.
• Optional Dura-Cote™ protective treatment greatly increases abrasion, heat,
flame and petrochemical resistance while virtually eliminating water
pick-up. When treated, Triple Poly is protected from mildew and no drying
is required.
• Lining remains flexible to temperatures as low as -40°F (-40°C) and is
highly resistant to ozone and oxidation.
• Specifically engineered for Supply and Soft Suction hose applications.
• National Fire Hose Triple Poly is manufactured in accordance with NFPA 1961
standard, latest edition within our ISO-9001: 2000 certified quality assurance
system.
SIZE SERVICE PROOF BURST WEIGHT FLAT HOSE BED BOWL
TEST TEST (For 50’ Coupled) WIDTH Volume (100’) SIZE
PSI (kPa) PSI (kPa) PSI (kPa) LBS (KG) IN FT 3 IN
4” 300 (2070) 600 (4140) 900 (6200) 41 (19.5) 6.90 3.5 4-17/32
5” 300 (2070) 600 (4140) 900 (6200) 51 (23.1) 8.40 4.0 5-15/32
Construction:
Polyester Double Jacket
Polyurethane Inner Liner
Temperature Range:
-40° to 150°F (-40° to 65°C)
Couplings Available:
Aluminum Or Brass NH/NST or
IPT Threaded & Aluminum
Storz options
Hose Colors:
SUPPLY
SOFT SUCTION
M-12
