21

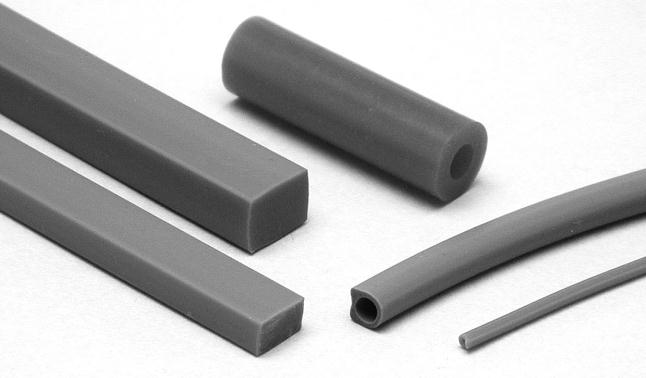

Fluorosilicone strip, tubing, cord, “P”
seals, “U” channel and special molded
and extruded shapes are available to
MIL-R-25988 and other specifications.
This material has a superior fuel and oil
resistance combined with silicone’s
typical high temperature capabilities.
Applications included, gaskets or seals
demanding service incontact with jet
fuel, solvents, gasoline, or crude oil. This
elastomer is serviceable over a
temperature range of -60ºC to 177ºC
(-76 to 350ºF). In dry heat, the
serviceable temperature range is
extended up to 232ºC (450ºF). Physical
properties are comparable to those of
general - purpose compounds.
Dimensional designators will be the
same as “solid” silicone extrusions.
See table X for resistance properties
Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com
AVAILABLE SPECIFICATIONS
AMS 3325, AMS 3326, MIL R 25988
SAE 25988, ASTM D 2000 FE
Rubber Extrusions
Series 1200
TYPICAL INDUSTRIES UTILIZING
FLUOROSILICONE RUBBER
• AIRCRAFT, MILITARY AND
COMMERCIAL AVAITION
• PETROCHEMICAL AND OIL
REFINNING INDUSTRIES
• ELECTRONICS
TABLE X
RESISTANCE OF SILICONE RUBBER AND FLUOROSILICONE RUBBER TO EFFECTS OF CHEMICALS,
SOLVENTS, FUELS, & OILS*
Reagent Silicone Rubber Volume
Change Percent.
Fluorosilicone Rubber
Volume Change Percent
Acid Solutions (tested 7 days at room temperature)
10% hydraulic acid 0 to 2 nil
Concentrated hydrochloric acid 0 to 15 +10
10% nitric acid 1 to 10 nil
Concentrated nitric acid - 10 to -5 +5
10% sulfuric acid 1 to 5 nil
Concentrated sulfuric acid decomposed decomposed
Concentrated acetic acid 5 to 18 +25
Alkali solutions (tested 7 days at room temperature)
10% ammonium hydroxide nil nil
Concentrated ammonium hydroxide 0 to 7 +5
10% sodium hydroxide 0 to 3 nil
50% sodium hydroxide 0 to 9 nil
Solvents and fuels (tested 7 days at room temperature)
Acetone 15 to 25 +180
Carbon tetrachloride over 150 +20
Ethyl alcohol 0 to 20 +5
Iso- octane over 150 +20
Xylene over 150 +20
Reference Fuel B over 150 +20
Jet fuel JP-4 over 150 +10
Oils (tested 70 hours at 150ºC, 302ºF)
ASTM No. 1 oil 5 to 10 nil
ASTM No. 3 oil 35 to 60 +5
Mil-0- 7808 oil (PQ 8365) 10 to 30 +8
Hydraulic fluid Mil-0-5606 ( PQ 4226) over 100 +6
Oronite 8200 (silicate ester ) over 150 +5
Dow Corning 200 fluid, 100 centistokes (silicone fluid) 28 to 35 nil
Skydrol 500 (phosphate ester), 70 hours at 100ºC (212ºF) 10 to 20 +25
