TYPICAL INDUSTRIES UTILIZING FLUOROSILICONE RUBBER
• Aircraft, Military and Commercial Aviation
• Petrochemical and Oil Refinning Industries
• Electronics
Já-Bar Silicone Corporation • Phone: 973. 786-5000 • Fax: 973. 786-6067 • www.JaBar.com
Hardness Range from 40 durometer
Shore A to 80
Normal
Available Color Blue
Width 36" untrimmed standard
(other widths upon request)
AVAILABLE SPECIFICATIONS
AMS 3325, AMS 3326,
MIL R 25988, SAE 25988,
ASTM D 2000 FE
Dash No. Thickness Sheet Size
0101 .016 18"
0102 .031 18"
0103 .047 18"
0104 .062 18"
0105 .093 18"
0106 .125 18"
0107 .125 18"
0108 .188 18"
0109 .250 18"
0110 .375 18"
0111 .016 24"
0112 .031 24"
0113 .047 24"
0114 .062 24"
0115 .093 24"
0116 .125 24"
0117 .125 24"
0118 .188 24"
0119 .250 24"
0120 .375 24"
0121 .016 36"
0122 .031 36"
0123 .047 36"
0124 .062 36"
0125 .093 36"
0126 .125 36"
0127 .125 36"
0128 .188 36"
0129 .250 36"
0130 .375 36"
Continuous Sheets Series 1100
Some typical resistance values are listed below.
Values for other fluids are available upon request.

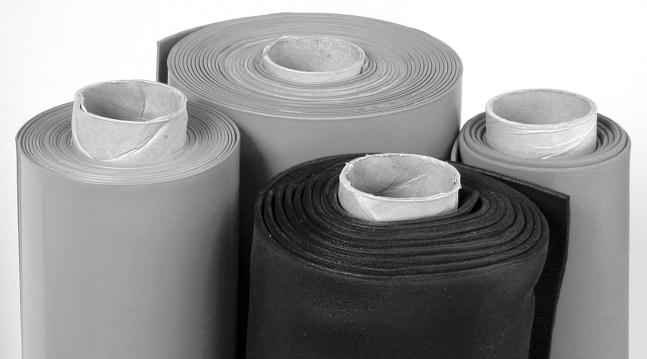

CONTINUOUS SHEETING
Continuous roll form for maximum yield
Immersion Medium Immersion
Conditions
Hardness
Change,
Points
Tensile
Strength
Change, %
Elongation
Change, %
Volume
Change, %
ASTM # 1 oil 3Days/302ºF -5 Nil -5 Nil
ASTM Ref. Fuel B 3 Days/302ºF -20 -60 -35 +30
SAE 10w-30w Motor Oil 30 Days/350ºF -9 -76 -80 +3
Gasoline, Regular/ Low Lead 24 Hrs/ 77ºF -12 -39 -30 +21
Jet Fuel JP - 4 3Days/350ºF -25 -65 -20 +25
Turbo Oil # 35 3 Days/302ºF -10 -30 +25 +10
Mineral Spirits 30 Days/75ºF Nil Nil Nil Nil
Trichloroethylene 5 Days/ 120ºF -10 Nil Nil +20
Hydraulic Fluid, Type A 3Days/302ºF -5 -10 -5 +5
ASTM Ref. Fuel B 3 Days/302ºF -20 -60 -35 +30
SAE 10w-30w Motor Oil 30 Days/350ºF -9 -76 -80 +3
Gasoline, Regular/ Low Lead 24 Hrs/ 77ºF -12 -39 -30 +21
Jet Fuel JP - 4 3Days/350ºF -25 -65 -20 +25
Turbo Oil # 35 3 Days/302ºF -10 -30 +25 +10
Mineral Spirits 30 Days/75ºF Nil Nil Nil Nil
Trichloroethylene 5 Days/ 120ºF -10 Nil Nil +20
