Fluorosilicone sheeting, is available to
MIL-R-25988 as well as other fluid
resistant specifications. The material has
better fuel and oil resistance than other
silicone elastomers but, maintains
silicone’s high temperature advantage.
In applications where contact with jet
fuel, solvents, gasoline, or crude oil is
required, this elastomer is serviceable
over a temperature range of -60ºC to
177ºC (-76 to 350ºF). In dry heat, the
serviceable temperature range is
extended up to 232ºC (450ºF). Physical
properties, including Tensile strength,
elongation, and tear resistance, are
comparable to those of general purpose
silicone rubber compounds.

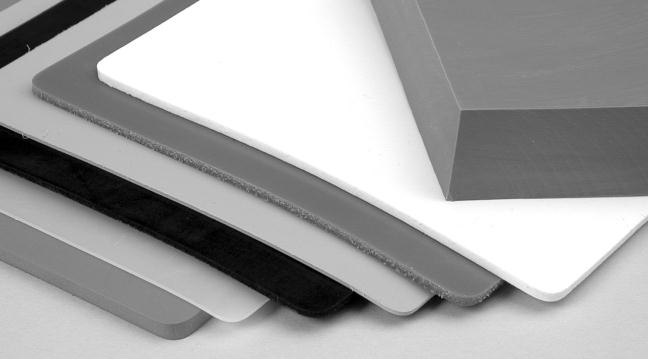

Rubber Sheets
Series 1100 AVAILABLE SPECIFICATIONS
AMS 3325, AMS 3326, MIL R 25988,
SAE 25988, ASTM D 2000 FE
FLUOROSILICONE MOLDED SHEET SIZES
TYPICAL INDUSTRIES UTILIZING FLUOROSILICONE RUBBER
• Aircraft, Military and Commercial Aviation
• Petrochemical and Oil Refinning Industries
• Electronics
Dash No. Thickness Sheet Size
0101 .015 12" X 12"
0102 .031 12" X 12"
0103 .047 12" X 12"
0104 .062 12" X 12"
0105 .078 12" X 12"
0106 .093 12" X 12"
0107 .125 12" X 12"
0108 .156 12" X 12"
0109 .188 12" X 12"
0110 .218 12" X 12"
0111 .250 12" X 12"
0112 .281 12" X 12"
0113 .312 12" X 12"
0114 .375 12" X 12"
0115 .437 12" X 12"
0116 .500 12" X 12"
0117 .625 12" X 12"
0118 .750 12" X 12"
0119 1.000 12" X 12"
0120 1.250 12" X 12"
0121 1.500 12" X 12"
0122 .015 24" X 24"
0123 .031 24" X 24"
0124 .047 24" X 24"
0125 .062 24" X 24"
0126 .078 24" X 24"
0127 .093 24" X 24"
0128 .125 24" X 24"
0129 .156 24" X 24"
0130 .188 24" X 24"
0131 .218 24" X 24"
Dash No. Thickness Sheet Size
0132 .250 24" X 24"
0133 .281 24" X 24"
0134 .312 24" X 24"
0135 .375 24" X 24"
0136 .437 24" X 24"
0137 .500 24" X 24"
0138 .625 24" X 24"
0139 .750 24" X 24"
0140 1.000 24" X 24"
0141 1.250 24" X 24"
0142 1.500 24" X 24"
0143 .015 36" X 36"
0144 .031 36" X 36"
0145 .047 36" X 36"
0146 .062 36" X 36"
0147 .078 36" X 36"
0148 .093 36" X 36"
0149 .125 36" X 36"
0150 .156 36" X 36"
0151 .188 36" X 36"
0152 .218 36" X 36"
0153 .250 36" X 36"
0154 .281 36" X 36"
0155 .312 36" X 36"
0156 .375 36" X 36"
0157 .437 36" X 36"
0158 .500 36" X 36"
0159 .625 36" X 36"
0160 .750 36" X 36"
0161 1.000 36" X 36"
