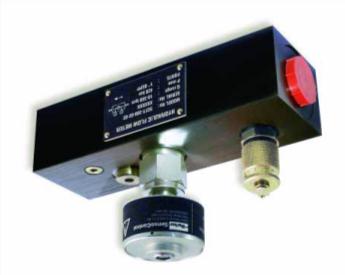

SensoControl Flow Sensors
These flow sensors are a compact light-weight
aluminum diagnostic tool capable of measuring
pressure, temperature and flow from a single test
point in a hydraulic system.
These flow sensors are designed to be used with
a wide variety of hydraulic fluids. This design also
mini mizes the effect of viscosity changes. These
units are manufactured from solid aluminum
bar stock and are rated to 6000 PSI* and
temperatures of 0°F to +350°F. They are
available in four sizes with flow measuring
ranges from 0.2 – 160 GPM.
Flow sensors are provided with a choice of
PD, PDP or EMA style diagnostic ports and
are designed to be used with Serviceman™
and Service Master equipment.
Measuring Flow Sensor Flow Sensor Flow Sensor Inlet/Outlet Port Length Height Width
Range with PD Nipple with PDP Nipple with EMA Nipple Configuration inches inches inches
0.2 – 4 GPM (1 – 15 l/min) SCFT-0004-PD SCFT-0004-PDP SCFT-0004-EMA 3/4-16 ORB 5.35 4.61 1.46
1 – 16 GPM (4 – 60 l/min) SCFT-0116-PD SCFT-0116-PDP SCFT-0116-EMA 1 1/16-12 ORB 7.48 5.12 2.44
3 – 80 GPM (10 – 300 l/min) SCFT-0380-PD SCFT-0380-PDP SCFT-0380-EMA 1 5/16-12 ORB 7.48 5.28 2.44
5 – 160 GPM (20 – 600 l/min) SCFT-5160-PD SCFT-5160-PDP SCFT-5160-EMA 1 5/8-12 ORB 8.35 5.91 2.44
How to Order
Material Specifications
Flow Block . . . . . . . . . . . . . . . . . . . . Anodized Aluminum
Turbine . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel
Bearings . . . . . . . . . . . . . . . . . . . . . . . . . .Stainless Steel
Seal Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Nitrile
Electrical Connection . . . . . . . . . . . .5 Pin Push-Pull Style
Pressure Rating* . . . . . . . . . . . . . . . . . . . . . . . . . . . .6000 PSI
* SCFT–7160 is rated to 5000 PSI
Fluid Temperature Range . . . . . . . . . . . . . . . . . .0°F to +350°F
Ambient Temperature Range . . . . . . . . . . . . . . . .0°F to +120°F
Media/Compatibility . . . . . . . . . . . . . . .Petroleum Based Fluids
(Contact factory for use with water based hydraulic fluids)
Flow Measurement Accuracy . . . . . . . . . . . . .±1.0% Full Scale
Voltage Input . . . . . . . . . . . . . . . . . . . . . . . . . . . .+7 to 12 VDC
(Supplied by SensoControl meter)
Current Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6mA
Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 ms
Viscosity Range . . . . . . . . . . . . . . . . . . . . . . . . . . .11 to 50 cSt
Flow Sensors Technical Data
5 pin to 5 pin Cables
Flow sensor, transducer and
temperature probe cables for both
Serviceman and Service Master.
Length Part Number
10 ft (3 m) SCK-102-03-02
Extension Cable
16.4 ft (5 m) SCK-102-05-12
Adapters
See Catalog 3800 for the available
adapters used in conjunction with
Serviceman diagnostic equipment.
Data Cable/Software
for use between the RS232
meter port and a PC
Part Number
SCSW-KIT-152
