Pressure Transducer Options
Materials of Construction
Transducer . . . . . . . . . . . .Stainless steel
Diaphragm . . . . . . . . . . . .Stainless steel
Coupler . . . . . . . . . . . .Zinc Plated steel
Seal . . . . . . . . . . . . . . . . . .Fluorocarbon
Temperature Range
Working . . . . . . . . . . . . . . . .-4° to 185°
Fluid . . . . . . . . . . . . . . . . . .-13° to 221°
Storage . . . . . . . . . . . . . . .-40° to 257°
Output
Accuracy . . . . . . . . . . . . . . . . .0.5% FS
Load . . . . . . . . . . . . . . . . . . . .2m ohms
Response time . . . . . . . . . . . . . .<1 ms
Output signal to noise . . . . . . . .0.1%FS
Resonant frequency . . . . . . . . .100 KHz
Voltage Requirement
7 to 12 VDC excitation voltage
Permissible ripple . . . . . . . . . . . .±2% ss
Current requirement . . . . . . . . . . . .5 mA
Transducer
Technical Data
PD ✳ ✳ -0100 PD ✳ ✳ -0600 PD ✳ ✳ -1500 PD ✳ ✳ -4000 PD ✳ ✳ -6000 PD ✳ ✳ -10000
Measuring Range (Pressure) -14.5 to 235 PSI 0 to 870 PSI 0 to 2175 PSI 0 to 5800 PSI 0 to 8700(1) PSI 0 to 14500(2) PSI
Color Code Blue Green Yellow Orange Red Red
Measuring Range (Temp.) -13°F to 221°F -13°F to 221°F -13°F to 221°F -13°F to 221°F -13°F to 221°F -13°F to 221°F
Max. Overload Pressure 290 PSI 1450 PSI 3625 PSI 14500 PSI 14500 PSI 14500 PSI
Output Signal (Volts) -0.2 to 2 0 to 3 0 to 3 0 to 3 0 to 3 0 to 3
Hysteresis (% FS Typical) 0.1 0.05 0.1 0.08 0.05 0.05
Repeatability (%FS Typical) 0.08 0.13 0.13 0.1 0.1 0.1
Non-conformity (%FS) 0.25 0.2 0.2 0.28 0.25 0.25
Response Time 1 ms 1 ms 1 ms 1 ms 1 ms 1 ms
Excitation Voltage 7-12 VDC 7-12 VDC 7-12 VDC 7-12 VDC 7-12 VDC 7-12 VDC
(1) Maximum Rated Pressure for PD Series Couplers is 6000 PSI.
(2) Maximum Rated Pressure for EMA Series Couplers is 9000 PSI.
Pin Mark Wire Colors
1 P yellow
2 T white
3 + brown
4 – green
5 SK grey
Cable End
(Pin Out)
Temperature Sensor
for Serviceman and Service Master.
Can be used with Parker flow sensors
or with an SCTA-1/4 port adapter.
Accuracy: +–1.5% Full scale
Temperature range: -13°F to 257°F
(-25°C to 125°C)
Part Number
SCT-150-04-02
Tachometer Adapters
Contact adapter for belt drive/wheel.
Part Number
SCRPMA-001
Focus adapter for confined areas.
Part Number
SCRPMA-001

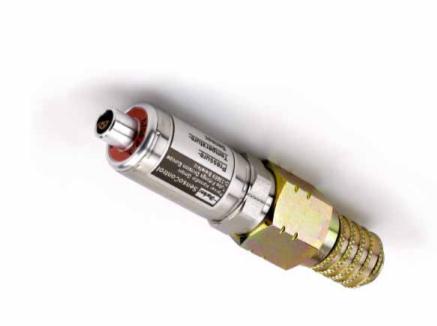

• Six measurement ranges:
Vacuum to 14,500 PSI
• Color coded for easy identification
• Corrosion resistant stainless steel housing
• Accuracy of .5% Full Scale (FS)
• Available with PD, PDP or EMA style
diagnostic couplings
Accessories to Expand the Functionality of the Serviceman
Technical Data
Measuring Range . . . . . . . . . . . . . . .20 – 10,000 RPM
Measuring Distance . . . . . . . . . . . . . . . . . .0.1 – 19.5 in
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..0.5%
Excitation Voltage . . . . . . . . . . . . . . . . . . . . .7 – 9 VDC
Output Signal . . . . . . . . . . . . . . . . . . . . . . . .0 – 3 VDC
Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 RPM
SCRPM Tachometer
for Serviceman and Service Master Meters.
Displays a precision measurement of
rotational speed. 5-pin push-pull style con-
nector.
Part Number
SCRPM-220
