Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings A-40
Pneumatic Quick Couplings
Accessories
BG Series
Features
• Easy to control variable flow pistol grip trigger.
• Nozzles available that meet OSHA requirements.
• Lightweight ergonomical design.
• Bodies are constructed of impact resistant plastic.
How to Order
BG Part Number: BG 442 - SBL
BG Series Blow Gun
Color
BL - Black
Meets OSHA Requirement
S - Yes
N- No
Nozzle Style
41 - Extended
42 - Extended (Meets OSHA Requirement)
43 - 1/8" FNPT
44 - Short (Meets OSHA Requirement)
Inlet Port in 16ths
Description

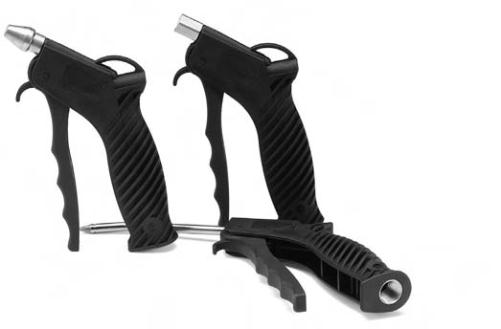

Made from impact resistant plastic, BG Series blow guns are
durable and versatile. Extended nozzles allow air to be
directed where it is required. The pistol grip trigger allows
greater control over the amount of air delivered. Combined,
these two features provide superior performance in a light
weight, ergonomically designed package.
Nozzles are available in short and extended versions and
most models meet OSHA directives on the use of
compressed air for cleaning purposes. OSHA directive #100-1
states that "when dead ending occurs a static pressure at the
main orifice shall not exceed 30 psi." For those blow guns that
do not meet this requirement, OSHA requires that
"compressed air shall not be used for cleaning purposes
except where reduced to less than 30 psi, and then only with
effective chip guarding and personal protective equipment"
(section 29 CFR 1910.242 paragraph b). Please refer to the
blow gun descriptions below for compatibility with OSHA
directive #100-1.
Nozzle configurations are designed for maximum flexibility.
Applications with special requirements may find the BG443-
NBL with a 1/8" NPT fitting convenient for adapting existing
nozzles or extra-long extensions. For information on specials
or made-to-order blow gun nozzles, please contact the Quick
Coupling Division.
Specifications
Rated Pressure (PSI) 175 psi
Temperature Range to 120° F
Inlet Port 1/4” NPTF
Part Meets OSHA
Number Nozzle Requirements
BG441-NBL Extended No
Part Meets OSHA
Number Nozzle Requirements
BG442-SBL Extended Yes
Part Meets OSHA
Number Nozzle Requirements
BG443-NBL 1/8” Female NPT No
Part Meets OSHA
Number Nozzle Requirements
BG444-SBL Vortec Yes
