Diagnostic Products
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings F-26
F
Diagnostic
Nipples
Male Straight Thread
Male Pipe Thread
Body Thread Thread Dimensions (in.)
Size Part Size Size Overall Exposed Hex Largest Wt. (LB.)
(in.) No. ORB or NPTF METRIC Length Length Size Diameter P/Piece
D E F G
1/8 BPDFS341 7/16-20ORB 1.60 0.90 0.69 0.79 0.08
1/8 BPDFS343 1/4-18 NPTF 1.48 0.78 0.69 0.79 0.06
1/8 PDFS-PROBE* NA – – – – –
Fluorocarbon seal is standard.
Dust Cap PD6-285 is recommended.
Test Port Couplings
Fluid Sampling
Specifications
Body Size (in.) 1/8
Rated Pressure (psi) 500
Temperature Range (std seals: Fluorocarbon) -40° to +250°F
Seal material Fluorocarbon
Body Female Female Dimensions (in.)
Size Part Thread Thread Overall Wrench Largest Wt. (LB.)
(in.) No. NPTF ORB Length Flats Diameter P/Piece
A B C
1/8 PDFS242 1/4-18 – 2.15 0.81 0.96 0.25
Couplers
Female Thread
D
E
G
F
D
E
G
F
Features

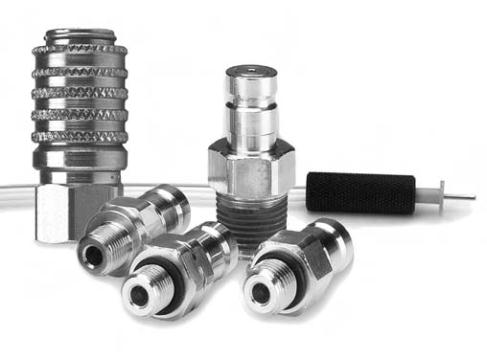

These diagnostic fluid sampling products are designed to
provide an easy access point for obtaining fluid samples. A
permanently mounted test point eliminates the need to shut
down or break lines when taking samples and reduces the
chances of contamination. Fluid analysis is crucial in both
engines and hydraulic systems as it can reveal problems with
filtration and other internal components. Early detection can
prevent costly repairs, unscheduled maintenance and
production downtime. These fluid sampling nipples should be
installed in either low pressure or return lines. For the most
accurate monitoring, fluid samples should be constantly taken
from the same location.
