Diagnostic Products
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings F-18
F
Diagnostic

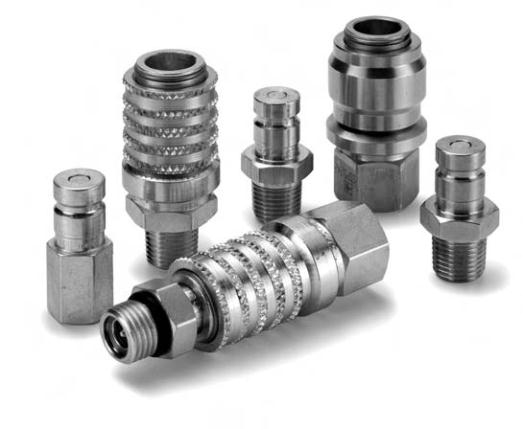

Test Port Couplings
PD Series
Applications
PD Series couplings provide easy connection for mechanical
gauges or specialized diagnostic equipment like SensoControl®.
Typically, PD or BPD nipples are permanently mounted in the
system at threaded test ports, in rigid tubing or in hose
assemblies. PD couplers are attached to test instruments.
Couplers align to the mating nipples without threading. This
allows gauges, transducers and other test equipment to be
snapped into place without difficulty.
Note: Protective dust plugs and caps play a crucial role in the
life of a quick coupling and no purchase of a hydraulic quick
coupling is complete without the selection of an appropriate
dust plug and cap. See pages noted in Table of Contents for
dust plugs and caps for the Parker full line of hydraulic
couplings.
Features
• Flush-face poppet valves minimize air inclusion and
spillage, provide easy-to-clean surfaces, and help to
prevent contamination.
• Grip-tight knurled sleeves help to make connecting and dis-
connecting easy, even while wearing gloves.
• Nipples are machined from high tensile steel for strength to
withstand 6000 PSI continuous operating pressure. BPD
nipples offer features similar to the standard steel PD
nipples with the added feature of a brass body.
• PD nipples are designed to meet or exceed SAE J1502 and
ISO 15171-1 design and performance specifications.
• End connections include pipe, O-ring, metric thread,
bulkhead, 37° Flare, ORFS and bite-type.
Specifications
PD Series
DUST CAP
Body Size Dust Cap
(in.) Part No.
1/8 PD6-285
Body Size 1/8
Description PD Coupler PD Nipple BPD Nipple Assembly
Part Number PD242 PD361 BPD343Y —
Body Material (Steel) Carbon Steel High Tensile Brass —
Steel
Rated Pressure (PSI) 6000 6000 300 6000
Temperature Range (STD Seals) Nitrile -40°F to +250°F -15°F to +400°F -40°F to +250°F
(Fluorocarbon)
Rated Flow (GPM) — — — 0.8
Max. Recommended Flow (GPM) — — — 4.0
Burst Pressure (PSI/Min) 23,000 40,000 — 17,000
Vacuum Data (Inches Hg) 27.5 27.5 27.5 27.5
Pressure Drop at Rated Flow
(PSI) with 200 SUS Fluid — — — 56
Spillage at 15 PSI (ml)-Assembly 0.1 per disconnect
Air Inclusion (ml)-Assembly 0.02 per connect
Connect Force-Assembly 41 Lbs. (100 PSI)
Disconnect Force-Assembly 20 Lbs. (100 PSI)
Optional Seals Suffix*
*To select proper seal materials, see Fluid Compatibility Chart in Appendices
section, or contact your Parker Quick Coupling Distributor.
**N/A = Not Available; STD = Standard (No Suffix Needed)
No suffix is required when ordering products with the
standard Nitrile seals. When specifying an optional seal,
refer to the following chart to determine the appropriate
suffix.**
Coupling Series Ethylene Fluoro- Neoprene Perfluoro-
Propylene carbon elastomer
PD Series W Y Z
PDP Series W Y Z
Coupler/Nipple Material
• Prefix “B” for Brass body
• Prefix “SS” for Stainless Steel body
• Standard body material is Steel
Ordering information
