Diagnostic Products
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings F-17
F
Diagnostic
SensoWIN™ 4.03 Software
for data transfer from the Parker Service
Master Meter to a PC (Windows 98
and newer).
Part Number
SCSW-400
Temperature Sensor
for Serviceman and the Parker
Service Master. Can be used with
Parker flow sensors or with an
SCTA-1/4 port adapter.
Accuracy: +–1.5% Full scale
Temperature range: -13°F to 257°F
(-25°C to 125°C)
Part Number
SCT-150-04-02
5 pin to 5 pin Cables
Flow sensor, transducer and
temperature probe cables for both
Serviceman and the Parker
Service Master.
Length Part Number
10 ft (3 m) SCK-102-03-02
Extension Cable
16.4 ft (5 m) SCK-102-05-12
Voltage Adapter
for use with Auxiliary Sensors
to the Parker Service Master.
Input: 0 - 20 MA or 0 - 10 VDC
Accuracy: 0.25% FS
Part Number
SCMA-VADC-600
Tachometer Adapters
Contact Adapter for belt drive/wheel.
Part Number
SCRPMA-001
Focus Adapter for confined areas.
Part Number
SCRPMA-001
Technical Data
Measuring Range . . . . . . . . . . . . . . .20 – 10,000 RPM
Measuring Distance . . . . . . . . . . . . . . . . . .0.1 – 19.5 in
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . ..0.5% FS
Excitation Voltage . . . . . . . . . . . . . . . . . . . . .7 – 9 VDC
Output Signal . . . . . . . . . . . . . . . . . . . . . . . .0 – 3 VDC
Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 RPM

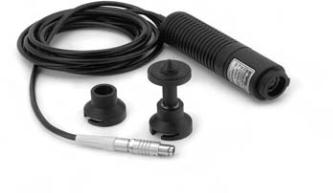

SCRPMTachometer
for Serviceman and the Parker Service
Master Meters. Displays a precision
measurement of rotational speed.
5-pin push-pull style connector.
Part Number
SCRPM-220
The SensoControl® Serviceman™/Service Master
Components and Accessories

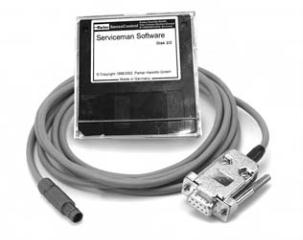

Data Cable/Software
for use between the Serviceman Meter
and a PC (Windows 98 and newer).
Part Number
SCSW-KIT-152
Special Note
All Parker SensoControl hand-held diagnostic meters are now equipped with the same 5-pin push-pull style connector ports.
This means accessories such as pressure sensors, temperature sensors, flow meters, tachometers and cables are all
interchangeable between the Serviceman and the Parker Service Master meters.
