Diagnostic Products
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings F-10
F
Diagnostic

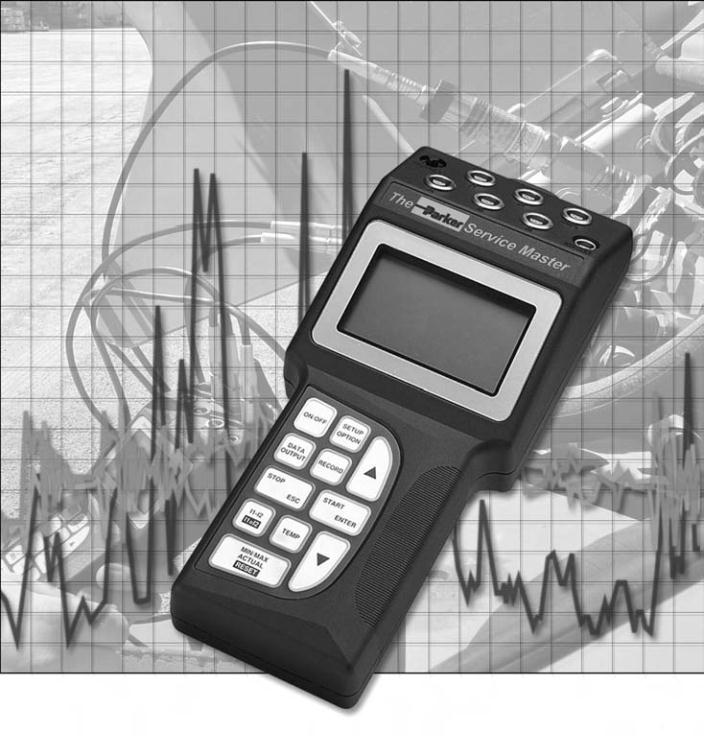

The SensoControl® Service Master
General
Hand-held
Diagnostic Meter
to Measure Pressure,
Temperature, Flow and
Rotational Speed for
Hydraulic and
Pneumatic Systems
• Easy operation
• Rugged design
• Large display
• Auto sensor recognition
• MIN/MAX Memory
• On-line operation
• Multiple sensor inputs
• Battery monitoring
As with all SensoControl equipment, the Parker Service Master
offers the latest in sensor recognition technology, eliminating the
need for individual sensor setup. It also allows you to program
the individual inputs to accept other data collection formats,
such as 4-20 ma, or 0-10 Volt.
Parker Hannifin provides the most complete line of hydraulic
and pneumatic diagnostic equipment available today. For more
information contact the Quick Coupling DIvision or your
local distributor.
The Parker Service Master meter is a state-of-the-art
instrument with six channels for data collection. The ergo-
nomically designed case and large automatic scaling LCD
display make it very easy to use in even the most demanding
environments.
They are the perfect tool to capture diagnostic measure-
ments at remote locations. Able to measure pressure,
temperature, flow and rotational speed simultaneously, the
data can be gathered and stored on a PC for later analysis.
The SCM-450 provides 250,000 data points of storage.
These measurements can easily be transferred to your PC via
an RS232 interface and SensoWin™ 4.03 software which is
compatible with Windows98 and newer operating systems.
