Diagnostic Products
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings F-9
F
Diagnostic
The SensoControl® Serviceman™
Test Meter Kits
Test Meter Kits
CODE DESCRIPTION
2 PD Style
4 PDP Style
6 EMA3 Style (Female)
Transducer Pressure Range
(Choose one or two)
Diagnostic Style
Code for Ordering Separately:
SCFT-XXXX - XXX CODE DESCRIPTION
PD PD Style
PDP PDP Style
EMA EMA Style
Flow Range
CODE FLOW RATE
0004 0.2 – 4 GPM (1 – 15 l/min)
0116 1 – 16 GPM (4 – 60 l/min)
0380 3 – 80 GPM (10 – 300 l/min)
5160 5 – 160 GPM (20 – 600 l/min)
Diagnostic Style
Additional Transducers
Flow Sensors
Code for Ordering Separately:
PD XXXXXX - XXXX
CODE DESCRIPTION
TA PD Style
PTA PDP Style
TEMA3 EMA3 Style (Female)
Diagnostic Style
CODE PRESSURE COLOR
0100 -14.5 – +235 PSI Blue
0600 0 – 870 PSI Green
1500 0 – 2175 PSI Yellow
4000 0 – 5800 PSI Orange
6000 0 – 8700 PSI Red
Pressure Range

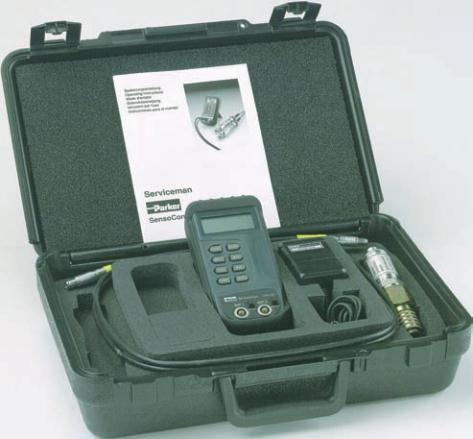

Kit Contents:
Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SCC-150
Serviceman Meter . . . . . . . . . . . . . . . . . . .SCM-152-2-02
Transducers (Quantity 1 or 2) . . . . . . . . . .(See Below)
Cable (Quantity 1 or 2) . . . . . . . . . . . . . . .SCK-102-03-02
Power Supply – Meter* . . . . . . . . . . . . . . .SCSN-450
Instruction Manual* . . . . . . . . . . . . . . . . . .SCM-152-TM
* Included with Serviceman Meter
Code for Ordering
Serviceman Meter Kits:
PDS3 - X - XX - XX
CODE PRESSURE COLOR
01 -14.5 – +235 PSI Blue
06 0 – 870 PSI Green
15 0 – 2175 PSI Yellow
40 0 – 5800 PSI Orange
60 0 – 8700 PSI Red
