Thermoplastic Couplings
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings
C-12
C
Thermoplastics

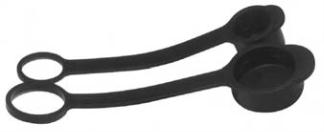

Nipple Dust Cap
FR-502
Coupler Dust Cap
FR-501
Body
Tank Overall Largest Wrench Wt. (LB.)
Size
Part
Port* Mount Length Diameter Flats P/Piece
(in.)
No.
Thread Thread
A B
1/2 PF-502-8FP 1/2" NPT None 2.96 1.33 1.24 0.09
1 PF-1002-16FP 1" NPT None 3.92 2.20 1.87 0.26
2 PF-2002-32FP 2” NPT None 5.71 3.55 -
0.75
* Female NPTThreads standard. For other port options contact the division.
Non-Spill Couplings
PF Series – Non-Spill Chemical Transfer Couplings
Dust Caps and Plugs
A
B
1" NPT
Nipples
A
B
1" NPT
2-11 1/2 NPS
Modified Thread
Fluorocarbon Gasket
Couplers
A
B
1" NPT
Nipple Dust Cap
PFR-1002
Nipple Dust Cap (Tank Mount)
PFR-1002-NS
Body
Tank Overall Largest WrenchWt. (LB.)
Size
Part
Port* Mount Length Diameter Flats P/Piece
(in.)
No.
Thread Thread
A B
1 PF-1002-32MB 1" NPT Modified 3.92 2.75 1.87 0.33
Buttress
1 PF-1002-32MP 1" NPT Modified 3.92 2.75 1.87 0.31
NPS
* Female NPTThreads standard. For other port options contact the division.
A
B
1" NPT
2 1/2 -5 Modified
5
°
/45
°
Buttress Thread
Fluorocarbon Gasket
Body
Part
Port*
Overall Largest Wrench Wt. (LB.)
Size (in.)
No.
Thread
Length Diameter Flats P/Piece
A B
1/2 PF-501-8FP 1/2"NPT
3.02
1.88
1.38
0.18
1 PF-1001-16FP 1" NPT
3.99
3.00
1.99
0.53
2 PF-2001-32FP 2” NPT
6.63 5.00
-
1.75
* Female NPTThreads standard. For other port options contact the division.
* For use with Tank Mount Nipples
Nipples - Tank Mount
Body Coupler Dust Cap Nipple Dust Cap
Material
Size (in.)
Part No.
Part No.
1/2
FR-501
FR-502
Synthetic Rubber
1
None
PFR-1002 Ethylene Propylene
1
None
PFR-1002-NS* Ethylene Propylene
