Thermoplastic Couplings
Quick Coupling Division
8145 Lewis Road • Minneapolis, MN 55427
www.parker.com/quickcouplings
C-11
C
Thermoplastics
Applications
• Chemical Dispensing Systems
• Spray Application Equipment
• Mini Bulk Tanks
• Replacement for Banjo Style Camlok Fittings & Ball Valves
• Bulk Transfer Barrels
Specifications
(1) Also available in EPDM, Nitrile, Neoprene, Perfluoroelastomer
Features

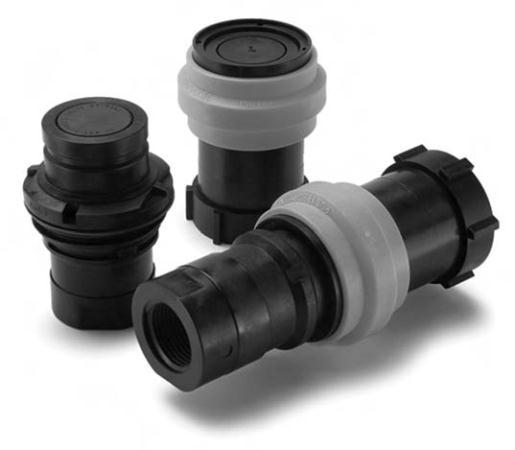

The Parker PF Series Dry Disconnect couplings virtually
eliminate fluid loss upon disconnection and are designed to help
meet the demand for closed system transfer and dispensing of
chemicals and fluids with minimal environmental contamination.
They can be used with concentrated or diluted industrial
chemicals, fertilizers, herbicides, insecticides, fungicides or
pesticides when transferring from bulk storage tanks, returnable
containers, applicators, etc.
The PF Series 2" body size is ideal for large bulk transfer
of fluids and eliminating fluid spillage when connecting and
disconnecting.
Additional features include:
• Rugged Glass filled Polypropylene construction for
chemical compatibility and reduced cost.
• Push-to-connect design.
• Flush face valves exhibit minimal spillage upon connect or
disconnect and air inclusion on connect, and enables ease
of cleaning.
• PTFE coated Fluorocarbon tank gasket for improved
chemical compatiblity.
• 1" coupler has non-wetted springs.
Body Size
1/2"
1"
2”
Materials:
Body
Polypropylene
Springs
316 Stainless Steel
Seals
Fluorocarbon
(1)
Rated Pressure
100 PSI
60 PSI
100 PSI
(at 68° F)
Rated Flow
12 GPM 20 GPM 50 GPM
Pressure Drop
11.3 PSI
3.4 PSI
4 PSI
at Rated Flow
Force to Connect
32 lbs.
41 lbs.
54 lbs.
Force to Disconnect
12 lbs.
17 lbs.
17 lbs.
Operating Temp.
+40°F to +140° F
Storage Temp.
-20°F to +140° F
Maximum Spillage 0.14 ml
1ml
9 ml
per Disconnect
.01 cu. in.
.06 cu. in. (1cc) .5 cu. in.
Vacuum Rating
27.4 Hg Contact Factory Contact Factory1
Non-Spill Couplings
PF Series – Chemical Transfer Couplings
PF (1/2", 1", 2")
Test Fluid: Water
0
5
10
15
20
25
0 10 20 30 40 50 60 70
Flow in USGPM
Pressure Drop in PSID
1/2"
1"
2"
Performance
