Pressure test hose if required.

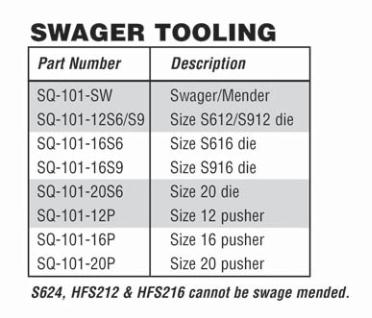

SQ-Swage Instructions
Align swager plates in parallel
and tightennutsonswagingbolts
uniformly until dies touch.
ASSEMBLE
HOSE 17 ASSEMBLE
HOSE 19
Remove die securing bolts and
nuts, and remove dies.
SEWER HOSE
Inspect depth insertion mark at
fittingends. Insertionmarkmust
be visible and within 1/8" of bot-
tom of fitting shell.
MEASURE &
INSPECT 21
ASSEMBLE
HOSE 18
Loosen swaging bolts to release
pressure on dies.
Lift out hose assembly.
ASSEMBLE
HOSE 20
Measureswagediameterof each
end of fitting at top, middle and
bottom of shell. Take measure-
ments at a minimum of three
places around shell circumfer-
ence. Verify swage diameter
is within tolerances. (Refer to
Swage Specification & Tool Se-
lection Chart for proper swage
diameters.)
MEASURE &
INSPECT 22
MEASURE &
INSPECT 23
