MiniKrimp™
Crimping Machine
All pumps are supplied to Parker by Enerpac. For repair or warranty work to any of the cylinders or pumps, contact your nearest Enerpac
Service Center. For the Enerpac Service Center nearest you, call 1-800-558-0530 or visit the Enerpac web site at www.Enerpac.com.

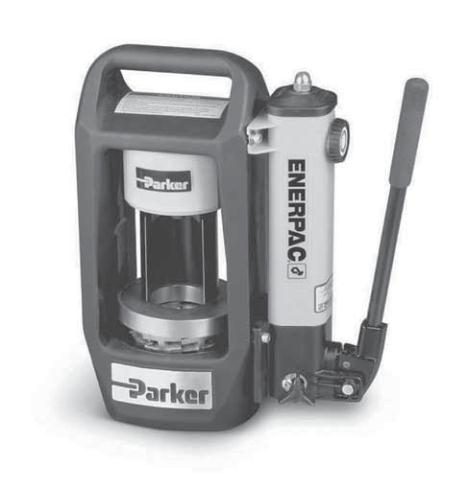

MiniKrimp™—Hand Pump Model
Standard Equipment
Model 94C-001-PFD includes:
Part Description Part Number
MiniKrimp™ Portable Crimping Machine 94C-080-PFD
Hand Pump 015301
Die Ring — Color Coded Silver 82C-R01-PFD
Specifications
Approximate Size (with Pump) 6" Deep, 13" Wide, 15" High
Weight 42lbs. with hand pump
Rating 30 tons force @ 10,000psi maximum
The Parker Hannifin MiniKrimp™ is the best portable crimper on the market. Its' unique
construction holds three U.S. patents for design and utility. By utilizing a one-piece,
high strength cast aluminum frame, the MiniKrimp is light, robust, and highly corrosion
resistant. At 10,000psi and 30+ tons of force the MiniKrimp can crimp the majority of
Parker thermoplastic, rubber, hybrid, PTFE and specialty hoses up to 1" ID. Exceptions
do occur depending on the hose type, hose size, and fitting material. It is suggested that
several trials be performed using the proposed hose and fitting combination in order to
confirm a successful crimp. Set up and cycle times can also be determined by perform-
ing a crimp trial. Cycle times will vary depending on the previously mentioned variables
in addition to the hydraulic pump used. Additional hydraulic pumps are listed for support
in the Parker catalogs 4660 or 4400. If a trial is not possible, contact the Parker hose
manufacturing division for support.
For crimp information on your particular hose and fitting combination refer to
CrimpSource Online or the appropriate catalog of the Parker division that supplies
the hose.
www.parker.com/fcg www.parker.com/dayco/csonline/crimpsource.asp
