Swagers, Swager Tooling
Parflex Minute Machine
PMM-1 Hand Swager
Operated with ordinary 1–1/2 open end or box wrench
(not included).
Interchangeable with other popular types of hand
swaging tools.
Best of all, factory perfect assemblies with
Parflex hose can be made anywhere in the field
by customers otherwise unfamiliar with
ordinary rubber hose assembly procedures.
* Wrench part number: 821072
Swager Tooling
(Sizes given in fittings section)
Tube Pushers
See Fittings Section for correct
PUT part number.
Split Dies
See Swage and Crimp Die Selec-
tion Chart for correct
part number.
Male Pushers
See Fittings Section for correct PUM part
number.
Female Pushers
See Fittings Section for correct PUF &
PUL part number.
SQ-101-SW Swager/Mender
Used for field assembly or
repair on Predator S6
and S9 hoses

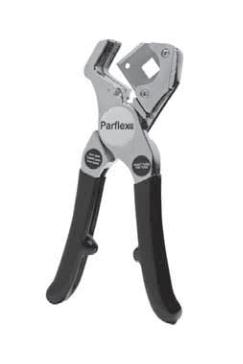

HTC Hose & Tubing Cutter
Features
:
• Heavy duty steel construction & insulated grip
• Special V-block design & blade
Multiple capabilities:
• Up to 1" hose/tubing OD
• Non-wire reinforced thermoplastic hose & tubing
• Non-wire reinforced rubber hose & tubing
Advantages /Benefits:
• Durable & portable; weighs only 12 ounces
• Ensures a straight, clean cut
• Cutting edge first punctures, then cuts
• Minimal flattening of hose /tubing during cutting
• Straight/square cut enhances fitting retention
• Easily adjustable blade provides two cutting
surfaces- doubles blade life
• Versatile; one tool for multiple applications–
Air tools, auto repair shops, beverage dispensers,
laboratories, many general industrial and
commercial applications
• Replacement blade: HTC-RB
