NoMar Polyurethane Fast-Stor
Dimensions in inches.
1. Slide the socket on the tubing with threads facing the end of the tubing.
2. Press the tubing over the Tube Support portion of the fitting until the tube
bottoms out. Do not use a lubricant.
3. Push the socket up to meet the mating threads on the fitting, finger tighten
the socket onto the fitting.
4. Tighten the fitting and socket until the fitting hex and socket hex meet.
Assembly Instructions
Fitting
Socket
Tubing

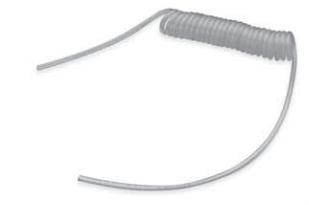

Parflex NoMar™ Fast-Stor
®
Pigtail Lengths – 16" End #1, 8" End #2
Standard color is transparent blue (-TBLU).
Other sizes and colors available upon request.
Consult factory.
Assembly
Part
Number
Hose
O. D.
in.
Hose
I. D.
in.
Working
Length
ft.
Coil
I. D.
in.
Max.
Working
Pressure
PSI at
73°F
Min.
Burst
PSI at
73°F
UFS-32-TBLU-010
3/16
1/8
10
3/4
125
375
UFS-32-TBLU-025
3/16
1/8
25
3/4
125
375
UFS-42-TBLU-010
1/4
1/8
10
3/4
125
375
UFS-42-TBLU-025
1/4
1/8
25
3/4
125
375
UFS-64-TBLU-010
3/8
1/4
10
1-1/4
125
375
UFS-64-TBLU-015
3/8
1/4
15
1-1/4
125
375
UFS-64-TBLU-020
3/8
1/4
20
1-1/4
125
375
UFS-64-TBLU-025
3/8
1/4
25
1-1/4
125
375
UFS-85-TBLU-010
1/2
21/64
10
2-1/2
125
375
UFS-85-TBLU-015
1/2
21/64
15
2-1/2
125
375
UFS-85-TBLU-020
1/2
21/64
20
2-1/2
125
375
UFS-85-TBLU-025
1/2
21/64
25
2-1/2
125
375
UFS-86-TBLU-010
1/2
3/8
10
2-1/2
85
255
UFS-86-TBLU-020
1/2
3/8
20
2-1/2
85
255
UFS-96-TBLU-010
9/16
3/8
10
2-1/2
125
375
UFS-96-TBLU-015
9/16
3/8
15
2-1/2
125
375
UFS-96-TBLU-020
9/16
3/8
20
2-1/2
125
375
UFS-128-TBLU-010
3/4
1/2
10
3
125
375
UFS-128-TBLU-015
3/4
1/2
15
3
125
375
UFS-128-TBLU-020
3/4
1/2
20
3
125
375
UFS-128-TBLU-025
3/4
1/2
25
3
125
375
