NoMar Polyurethane Fast-Stor
How to order:

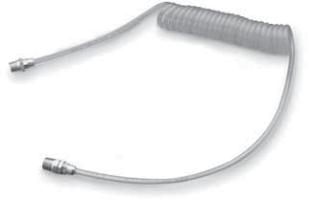

Urethane Fast-Stor
®
Assemblies
Includes live male end and rigid male end
Pigtail Lengths – 16" swivel end, 8" rigid end. Size -32 comes standard with two rigid ends.
Standard color is transparent blue (-TBLU). Other sizes and colors available upon request. Consult factory.
*Assembly includes rigid male end on both ends; live male ends not available.
+Permanent crimped shell.
Assembly
Part
Number
Hose
O. D. in.
Hose I.D.
in.
Working
Length
ft.
Coil I.D.
in.
Max. Working
Pressure
PSI at 73°F
Min.
Burst at
73°F
End
Fittings
AUFS-32-TBLU-010*
3/16
1/8
10
3/4
125
375
1/8" NPT
AUFS-32-TBLU-025*
3/16
1/8
25
3/4
125
375
1/8" NPT
AUFS-42-TBLU-010
1/4
1/8
10
3/4
125
375
1/4" NPT
AUFS-42-TBLU-025
1/4
1/8
25
3/4
125
375
1/4" NPT
AUFS-64-TBLU-010
3/8
1/4
10
1-1/4
125
375
1/4" NPT
AUFS-64-TBLU-015
3/8
1/4
15
1-1/4
125
375
1/4" NPT
AUFS-64-TBLU-020
3/8
1/4
20
1-1/4
125
375
1/4" NPT
AUFS-64-TBLU-025
3/8
1/4
25
1-1/4
125
375
1/4" NPT
AUFS-85-TBLU-010
1/2
21/64
10
2-1/2
125
375
3/8" NPT
AUFS-85-TBLU-015
1/2
21/64
15
2-1/2
125
375
3/8" NPT
AUFS-85-TBLU-020
1/2
21/64
20
2-1/2
125
375
3/8" NPT
AUFS-85-TBLU-025
1/2
21/64
25
2-1/2
125
375
3/8" NPT
AUFS-86-TBLU-010
1/2
3/8
10
2-1/2
85
255
3/8" NPT
AUFS-86-TBLU-020
1/2
3/8
20
2-1/2
85
255
3/8" NPT
AUFS-96-TBLU-010
9/16
3/8
10
2-1/2
125
375
3/8" NPT
AUFS-96-TBLU-015
9/16
3/8
15
2-1/2
125
375
3/8" NPT
AUFS-96-TBLU-020
9/16
3/8
20
2-1/2
125
375
3/8" NPT
AUFS-96-TBLU-025
9/16
3/8
25
2-1/2
125
375
3/8" NPT
AUFS-128-TBLU-010+
3/4
1/2
10
3
125
375
1/2" NPT
AUFS-128-TBLU-015+
3/4
1/2
15
3
125
375
1/2" NPT
AUFS-128-TBLU-020+
3/4
1/2
20
3
125
375
1/2" NPT
AUFS-128-TBLU-025+
3/4
1/2
25
3
125
375
1/2" NPT
Parflex NoMar™ Fast-Stor
®
Assemblies
Part
Number
Hose
O.D. in.
Hose
I.D. in.
Working
Length
ft.
Coil I.D.
in
Max Working
Pressure
PSI at 73°F
Min Burst
Pressure
PSI at 73°F
End Fittings
AHUFS-6-XXX-005
3/8
1/4
5
1-1/4
180
540
1/4" NPT
AHUFS-6-XXX-010
3/8
1/4
10
1-1/4
180
540
1/4" NPT
AHUFS-6-XXX-015
3/8
1/4
15
1-1/4
180
540
1/4" NPT
AHUFS-6-XXX-020
3/8
1/4
20
1-1/4
180
540
1/4" NPT
AHUFS-6-XXX-025
3/8
1/4
25
1-1/4
180
540
1/4" NPT
XXX- Color code for coils. Standard colors are: Black (BLK), Blue (BLU), Red (RED), Yellow (YEL)
Other sizes and colors available upon request. Consult factory
