Air & Multipurpose
Air Hose
Series 7092 (Red) and
Series 7093 (Black)
Temp Range: -40°F to +212°F (-40°C to +100°C)
Design Factor: 4:1
Crimped-on Brass, Rigid Male 1/4" x 1/4" NPT Thread Couplings Each End

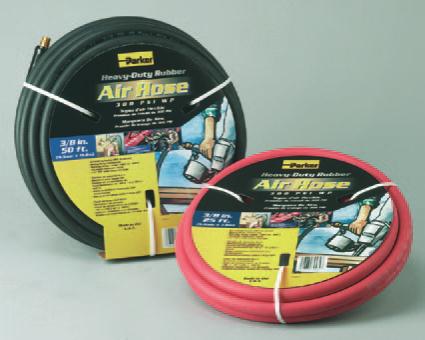

Display Coils with Parker Center Retail Packaging Disc
Cartons
Series 7092 (Red)
Part
Number
ID
(in)
ID
(mm)
Length
(ft)
Length
(mtrs)
Approx
Wt
(lbs/ea)
Approx
Wt
(kg/ea)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Std Pack
Qty
(ea)
Stock
Status
**
7092252-KAC 1/4 6.4 50 15.24 4.75 2.15 200 13.8 5 Y
7092252-KAD 1/4 6.4 25 7.62 2.50 1.13 200 13.8 10 Y
7092253-KAA 1/4 6.4 50 15.24 6.01 2.73 300 20.7 5 Y
7092253-KAB 1/4 6.4 25 7.62 3.15 1.43 300 20.7 10 Y
7092382-KAC 3/8 9.5 50 15.24 7.37 3.34 200 13.8 5 Y
7092382-KAD 3/8 9.5 25 7.62 3.86 1.75 200 13.8 10 Y
7092383-KAA 3/8 9.5 50 15.24 8.33 3.78 300 20.7 5 Y
7092383-KAB 3/8 9.5 25 7.62 4.34 1.87 300 20.7 10 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker
Customer Service.
Series 7093 (Black)
Part
Number
ID
(in)
ID
(mm)
Length
(ft)
Length
(mtrs)
Approx
Wt
(lbs/ea)
Approx
Wt
(kg/ea)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Std Pack
Qty
(ea)
Stock
Status
**
7093252-KAC 1/4 6.4 50 15.24 4.65 2.11 200 13.8 5 N
7093253-KAA 1/4 6.4 50 15.24 5.83 2.64 300 20.7 5 Y
7093382-KAC 3/8 9.5 50 15.24 7.15 3.24 200 13.8 5 N
7093383-KAA 3/8 9.5 50 15.24 8.09 3.67 300 20.7 5 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker
Customer Service.
Factory Assemblies
