Air & Multipurpose

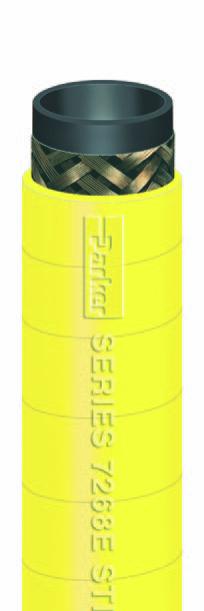

STINGER™ II
High Pressure Wire Braid Mine and
Multipurpose Hose
MSHA
Series 7268E
Series 7268E is a versatile, high pressure hose designed to handle air, mild chemicals,
oil, and water. Te hose construction incorporates high tensile wire braid reinforcement
that provides durability, kink resistance, high pressure capability, and superior coupling
retention. Te fame resistant bright yellow cover meets MSHA requirements and is also
resistant to abrasion and oil. Series 7268E provides service for high pressure air, dust
suppression and water applications in construction, general industrial, mining and quarry
applications.
Tube: Black nitrile
Reinforcement: One wire braid
Cover: Yellow nitrile/PVC; perforated wrapped fnish
Temp. Range: -20°F to +212°F (-29°C to +100°C)
Brand Method: Embossed (1-1/2" black ink)
Brand Example: PARKER SERIES 7268E STINGER II (ID) 1000 PSI MAX WP MSHA #
Design Factor: 4:1
Industry Standards: MSHA
Applications: • Air, mild chemicals, oil, water
• Heavy duty air tools, compressors; drill hose, dust suppression in
mines
• Construction, general industrial, mines, quarries
Vacuum: Not recommended
Compare to: Boston Concord Yellow Jack; Gates 1000MP/Mine Spray; Veyance
Minespray, Super Ortac
Packaging: Reels, cartons
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7268E-751 3/4 19.1 1 1.043 26.5 0.34 0.15 6.0 152.4 1000 68.9 HY, 43 524 Y
7268E-751050 3/4 19.1 1 1.043 26.5 0.34 0.15 6.0 152.4 1000 68.9 HY, 43 50 Y
7268E-751100 3/4 19.1 1 1.043 26.5 0.34 0.15 6.0 152.4 1000 68.9 HY, 43 100 Y
7268E-1001 1 25.4 1 1.339 34.0 0.50 0.23 8.0 203.2 1000 68.9 HY, 43 524 Y
7268E-1001050 1 25.4 1 1.339 34.0 0.50 0.23 8.0 203.2 1000 68.9 HY, 43 50 Y
7268E-1001100 1 25.4 1 1.339 34.0 0.50 0.23 8.0 203.2 1000 68.9 HY, 43 100 Y
7268E-1251050 1-1/4 31.8 1 1.630 41.4 0.67 0.30 12.0 304.8 1000 68.9 HY, 43 50 Y
7268E-1251100 1-1/4 31.8 1 1.630 41.4 0.67 0.30 12.0 304.8 1000 68.9 HY, 43 100 Y
7268E-1501050 1-1/2 38.1 1 1.890 48.0 0.86 0.39 14.0 355.6 1000 68.9 43 50 Y
7268E-1501100 1-1/2 38.1 1 1.890 48.0 0.86 0.39 14.0 355.6 1000 68.9 43 100 Y
7268E-2001 2 50.8 1 2.437 62.0 1.14 0.52 18.0 457.2 1000 68.9 43 50 Y
7268E-2001100 2 50.8 1 2.437 62.0 1.14 0.52 18.0 457.2 1000 68.9 43 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
