Air & Multipurpose

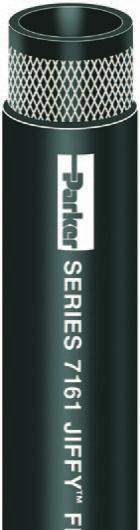

JIFFY FLEX™ 250
Push-On Multipurpose Hose
Nonconductive, MSHA
Series 7161
Series 7161 is a versatile nonconductive multipurpose push-on hose designed to handle
air, mild chemicals, oil, and water. Te hose construction is electrically nonconductive
with a minimum resistance of one megaohm per inch at 1000 volts DC. Te silicone-
free tube does not contaminate air powered paint spray systems. Te multiple plies of
textile reinforcement are applied at a precise angle to provide fexibility and superior
coupling retention — push-on couplings do not require bands, clamps or special tools for
installation. Te fame resistant cover meets MSHA requirements, is resistant to oil and
weathering, and is available in multiple standard colors for color-coded identifcation.
NOTES: • Do not use in hot, dry air applications, impulsing applications or vehicle
fuel systems.
• Te user must determine if the hose is suitable for applications subject to
electrical hazard. Contact Parker for additional information.
• Do not use bands or clamps to attach push-on couplings.
Tube: Black nitrile; ARPM Class A oil resistance
Reinforcement: Multiple textile plies
Cover: Black, blue, gray, green or red chloroprene; smooth fnish
Temp. Range: -20°F to +180°F (-29°C to +82°C)
Brand Method: White ink on black, blue and red hoses;
black ink on green and gray hoses
Brand Example: PARKER 7161 JIFFY FLEX™ 250 PUSH-ON HOSE (ID)
250 PSI MAX WP MSHA # ELECTRICALLY NON-CONDUCTIVE
MADE IN USA B2 (DATE CODE)
Design Factor: 4:1
Industry Standards: ARPM Class A oil resistant tube; electrically nonconductive with a
minimum resistance of one megaohm per inch at 1000 volts DC; MSHA
Applications: • Air, mild chemicals, oil, water
• Air operated paint systems, air tools, transfer lines, vacuum lines
• Agriculture, construction, general industrial; automotive/factory color-
coded assembly equipment
Vacuum: Not recommended
Compare to: Boston Easy Couple; Thermoid Flex-Loc Push On;
Veyance InstaGrip 250
Packaging: Reels
Color Codes: BK (black), BL (blue), GN (green), GY (gray), RD (red)
(Continued on the following page)
Other cover colors
available:
7161-BL
7161-GN
7161-GY
7161-RD
