Air & Multipurpose

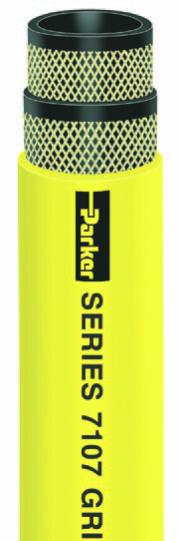

GRIZZLY™ 500
Multipurpose Hose
Nonconductive, MSHA
Series 7107
Series 7107 is a premium quality multipurpose hose designed to handle air, mild chemicals,
oil and water. Te hose is electrically nonconductive with a minimum resistance of one
megaohm per inch at 1000 volts DC. Te multiple plies of high tensile aramid reinforcement
provide durability, kink resistance, high pressure capability, superior coupling retention—
and the toughness of a heavy duty braided hose in a fexible, plied construction. Te bright
yellow fame resistant modifed nitrile/PVC cover meets MSHA requirements and is also
resistant to abrasion, oil and weathering.
NOTES:• Do not use in hot, dry air applications or with refned fuel.
• Te user must determine if the hose is suitable for applications subject to
electrical hazard. Contact Parker for additional information.
Tube: Black nitrile; ARPM Class A oil resistance
Reinforcement: Multiple aramid plies
Cover: Yellow nitrile/PVC; smooth fnish
Temp. Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: Black ink
Brand Example: PARKER SERIES 7107 GRIZZLY (ID) 500 PSI MAX WP ELECTRICALLY
NONCONDUCTIVE MSHA # MADE IN USA B2 (DATE CODE)
Design Factor: 4:1
Industry Standards: ARPM Class A oil resistance; electrically nonconductive with a minimum
resistance of one megaohm per inch at 1000 volts DC; MSHA
Applications: • Air, oil, mild chemicals, water
• Agriculture, construction, foundries, general industrial, mines
Vacuum: Not recommended
Compare to: Boston Mineforce; Gates Terminator; Veyance Gorilla
Packaging: Reels, cartons
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7107-25500 1/4 6.4 4 0.625 15.9 0.16 0.07 2.0 50.8 500 34.5 7661 750 Y
7107-38500 3/8 9.5 4 0.750 19.1 0.20 0.09 3.0 76.2 500 34.5 HY 600 Y
7107-50500 1/2 12.7 4 0.906 22.2 0.27 0.12 3.0 76.2 500 34.5 7661 500 Y
7107-75500 3/4 19.1 4 1.187 30.1 0.40 0.18 5.0 127.0 500 34.5 HY 400 Y
7107-75500050 3/4 19.1 4 1.187 30.1 0.40 0.18 5.0 127.0 500 34.5 HY 24 x 50 N
7107-100500 1 25.4 4 1.500 38.1 0.59 0.27 6.0 152.4 500 34.5 7661 300 Y
7107-125500 1-1/4 31.8 4 1.800 45.7 0.80 0.36 9.0 228.6 500 34.5 43 250 Y
7107-150500 1-1/2 38.1 4 2.031 51.6 0.91 0.41 12.0 304.8 500 34.5 43 200 Y
7107-200500 2 50.8 4 2.670 67.8 1.31 0.59 24.0 609.6 500 34.5 71 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
