Welding
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
7109-191
3/16 4.8 2 0.438 11.1 0.16 0.07 2.0 50.8 200 13.8 800
Y
7109-251
1/4 6.4 2 0.531 13.5 0.21 0.10 2.5 63.5 200 13.8 800
Y
7109-311
5/16 7.9 2 0.594 15.1 0.28 0.13 3.0 76.2 200 13.8 750
Y
7109-381
3/8 9.5 2 0.656 16.7 0.32 0.15 4.0 101.6 200 13.8 700
Y
Factory Assemblies:
Available from stock in popular confgurations. See below.
* Couplings:
As specifed in CGA publication E-1. Bulk welding hose couplings are not sold separately by Parker.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

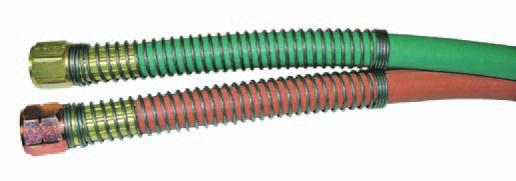

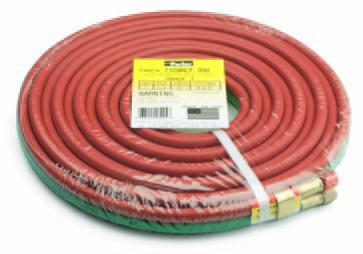

Series 7109 Factory Assemblies
Grade T Fitted Hose Assemblies
Part
Number
ID
(in)
ID
(mm)
Length
(ft)
Approx
Wt
(lbs/ea)
Approx
Wt
(kgs/ea)
Nut
Sizes
Std
Pack
Qty
Stock
Status
**
7109KABC-150
3/16 4.8 12-1/2 2.0
0.9 A & B 10
N
7109KABC-300
3/16 4.8 25
4.0
1.8 A & B 10
N
7109NLC-150
3/16 4.8 12-1/2 2.0
0.9 B & B 10
Y
7109NLC-300
3/16 4.8 25
4.0
1.8 B & B 10
N
7109NLC-600
3/16 4.8 50
7.0
3.2 B & B 5
N
7109NLC-1200
3/16 4.8 100 14.0 6.4 B & B 5
N
7109NLF-150
1/4 6.4 12-1/2 3.0
1.4 B & B 10
N
7109NLF-300
1/4 6.4 25
6.0
2.7 B & B 10
Y
7109NLF-600
1/4 6.4 50 11.0 5.0 B & B 5
Y
7109NLF-900
1/4 6.4 75 16.0 7.3 B & B 5
N
7109NLF-1200
1/4 6.4 100 21.0 9.5 B & B 5
Y
7109NLA-300
5/16 7.9 25
7.0
3.2 B & B 10
N
7109NLA-600
5/16 7.9 50 14.0 6.4 B & B 5
N
7109NLA-1200
5/16 7.9 100 29.0 13.2 B & B 5
N
7109NLM-300
3/8 9.5 25
8.0
3.6 B & B 10
Y
7109NLM-600
3/8 9.5 50 16.0 7.3 B & B 5
Y
7109NLM-1200
3/8 9.5 100 32.0 14.5 B & B 5
Y
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change.
Contact Parker Customer Service.
Grade T Fitted Hose Assemblies
with Steel Spring Guard Each End
Part
Number
ID
(in)
ID
(mm)
Length
(ft)
Approx
Wt
(lbs/ea)
Approx
Wt
(kgs/ea)
Nut
Sizes
Std
Pack
Qty
Stock
Status
**
7109NLF-300SG
1/4
6.4
25
5.7
2.6 B & B 10
Y
7109NLF-600SG
1/4
6.4
50 10.9 4.9 B & B 5
Y
7109NLF-1200SG
1/4
6.4 100 21.4 9.7 B & B 5
Y
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change.
Contact Parker Customer Service.
Series 7109 – SIAMEEZ
®
Grade T Twin Line Welding Hose (Continued)
