Welding
SIAMEEZ
®

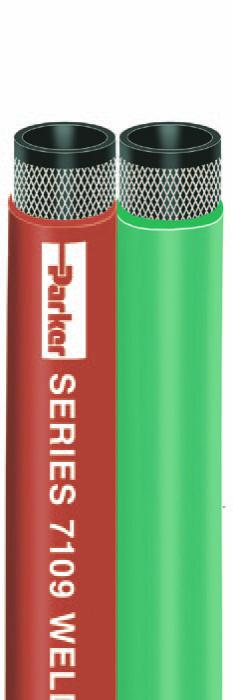

Grade T Twin Line Welding Hose
Red – Fuel Gas Line; Green – Oxygen Line
CGA E-1, ARPM IP-7
Series 7109
Series 7109 is a premium twin line welding hose featuring a fame resistant and oil
resistant tube and cover. Te red line is compatible with commonly used fuel gases,
including acetylene, hydrogen, natural gas, propane and propylene, and the green
line is compatible with oxygen. Te non-blooming tube minimizes the migration of
combustible waxes or plasticizers to the surface of the rubber, and the multiple plies
of textile reinforcement provide fexibility. Te cover is resistant to abrasion, fame,
mild chemicals, oil and ozone. Series 7109 is also available in factory-fabricated and
tested hose assemblies in popular confgurations. Grade T is the only grade of welding
hose recognized by the Compressed Gas Association (CGA) for oxy-fuel gas welding
applications.
Tube:
Black chloroprene
Reinforcement:
Multiple textile plies
Cover:
Green (oxygen) or Red (fuel gas) chloroprene; smooth fnish
Temp. Range:
-40°F to +200°F (-40°C to +93°C)
Brand Method:
White ink (red hose line)
Brand Example:
PARKER 7109 WELDING
!
WARNING FUEL GAS (ID) MAX WP 200
PSI ARPM/CGA IP-7-(YEAR) STD DUTY GRADE T COUPLE WITH
ONE INCH FERRULES MADE IN USA (DATE CODE)
Design Factor:
4:1
Industry Standards:
CGA E-1, ARPM IP-7
Applications:
•
Red:
Acetylene, hydrogen, natural gas, propane, propylene
Green:
Oxygen
• Bending, brazing, cutting, fabricating, gouging, joining, piercing,
pre-heating, post-heating, severing, soldering, straightening,
surfacing, trimming
• Assembly and fabrication shops, construction, factories, foundries,
mines, oil rigs, plumbing, rail yards, salvage, scrapyards, shipyards,
steel mills
Vacuum:
Not recommended
Compare to:
Thermoid Tuline Grade T; Veyance Gemini Twinline Grade T
Packaging:
Reels; ftted hose assemblies shrink-wrapped and labeled in master
cartons
(Continued on the following page)
WARNING!
Do not attempt to re-couple, repair or splice hose assemblies; replace all assemblies that show signs of abrading, abuse,
age, damage or fatigue. Refer to ARPM IP-7, Specifcations for Rubber Welding Hose and Hose Technical Bulletin 11-5, Guide for Use,
Maintenance and Inspection of Welding Hose. Refer to CGA Safety Bulletin SB-11,
Use of Rubber Welding Hose
. Refer to the Safety &
Technical Information section of this catalog for further information.
!
