Air & Multipurpose

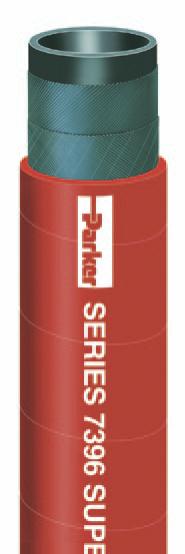

SUPER MPT® II
Multipurpose, Oil Resistant Air &Water Hose –
Nonconductive
Series 7396
Series 7396 is a versatile, nonconductive multipurpose hose designed to handle air, mild
chemicals, oil and water. Te hose is electrically nonconductive with a minimum resistance
of one megaohm per inch at 1000 volts DC. Te rigid mandrel construction produces a true
round, concentric profle for superior coupling ft and retention. Te cover is resistant to oil
and weathering.
NOTES: • Do not use in hot, dry air applications or with refned fuel.
• Te user must determine if the hose is suitable for applications subject to
electrical hazard. Contact Parker for additional information.
Tube: Black nitrile; ARPM Class A oil resistance
Reinforcement: Multiple textile plies
Cover: Red chloroprene, wrapped fnish
Temp. Range: -20°F to +212°F (-29°C to +100°C)
Brand Method: White text on red stripe
Brand Example: PARKER SERIES 7396 SUPER-MPT® MULTIPURPOSE HOSE XXX PSI
MAX WP ELECTRICALLY NONCONDUCTIVE MADE IN USA
Design Factor: 4:1
Industry Standards: ARPM Class A oil resistant tube; electrically nonconductive with a
minimum resistance of one megaohm per inch at 1000 volts DC
Applications: • Air, mild chemicals, oil, water
• Cooling lines for electric furnaces and pot lines; lubrication systems
• Agriculture, construction, foundries, general industrial
Vacuum: Not recommended
Compare to: Gates Durofex; Veyance Ortac 250
Packaging: Coils, reels (“A” part numbers)
(Continued on the following page)
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
