Water

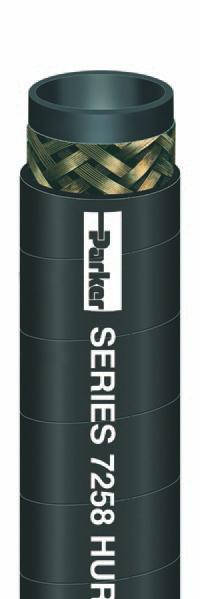

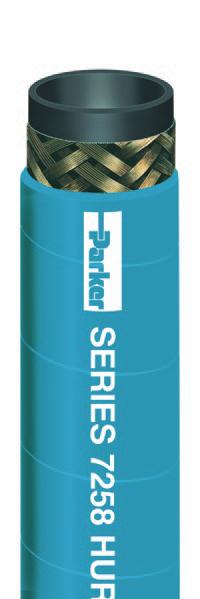

HURRICANE™
Pressure Washer Hose
Series 7258
Series 7258 is a fexible, high pressure, high temperature pressure washer
hose for hot water and mild chemicals. Te hose construction incorporates
a high tensile wire braid reinforcement that provides durability, kink
resistance and superior coupling retention. Both cover colors are resistant
to oil and weathering.
NOTE: Do not use for carpet cleaning or steam service.
Tube: Black chloroprene
Reinforcement: One wire braid
Cover: Black (BK), Blue (BL) chloroprene; wrapped fnish
Temp. Range: -40°F to +250°F (-40°C to +121°C)
Brand Method: White ink
Brand Example: PARKER SERIES 7258 HURRICANE™ 3000 PSI MAX
WP MADE IN USA (DATE CODE)
Design Factor: 4:1 (1/2" @ 3.5:1)
Industry Standards: None applicable
Applications: • Hot water, mild chemicals
• Agriculture, construction, general industrial, oil feld,
shipyards
Vacuum: Not recommended
Compare to: Gates Power Clean
Packaging: Reels
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7258-250BK 1/4 6.4 1 0.500 12.7 0.14 0.06 1.5 38.1 3000 206.8 HY, 43 500 Y
7258-380BK 3/8 9.5 1 0.625 15.7 0.19 0.09 2.0 50.8 3000 206.8 HY, 43 500 Y
7258-501BK 1/2 12.7 1 0.745 18.9 0.23 0.10 3.0 76.2 3000 206.8 HY, 43 500 N
7258-250BL 1/4 6.4 1 0.500 12.7 0.14 0.06 1.5 38.1 3000 206.8 43 500 Y
7258-380BL 3/8 9.5 1 0.625 15.7 0.19 0.09 2.0 50.8 3000 206.8 43 500 Y
Factory Assemblies: Available from stock in popular confgurations. Refer to the following page.
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
