Water
YELLOWBIRD®
High Pressure Mine and Multipurpose Hose
MSHA

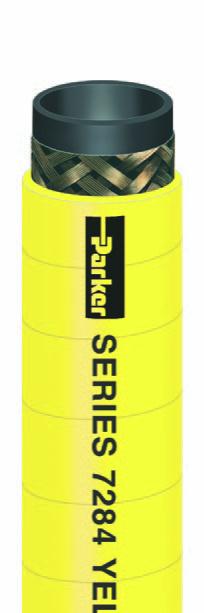

Series 7284
Series 7284 is a versatile, heavy duty high pressure hose designed to handle air, mild
chemicals and water. Te hose construction incorporates high tensile wire braid
reinforcement that provides durability, kink resistance, high pressure capability, and
superior coupling retention. Te fame resistant bright yellow cover meets MSHA
requirements and is also resistant to abrasion and oil. Series 7284 provides service for high
pressure air, dust suppression and water applications in construction, general industrial,
mining and quarry applications.
Tube: Black SBR
Reinforcement: One wire braid
Cover: Yellow nitrile/PVC; perforated wrapped fnish
Temp. Range: -20°F to +212°F (-29°C to +100°C)
Brand Method: Black ink
Brand Example: PARKER SERIES 7284 YELLOW BIRD® HOSE XXXX PSI MAX WP
MSHA # -- FLAME RESISTANT MADE IN USA (DATE CODE)
Design Factor: 4:1
Industry Standards: MSHA
Applications: • Air, water
• Heavy duty air tools, compressors; drill hose, dust suppression in
mines
• Construction, general industrial, mining, quarries
Vacuum: Not recommended
Compare to: Boston Concord Yellow Jack; Gates 1000MP/Mine Spray; Thermoid
Hercules 1000
Packaging: Reels, cartons
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7284-381 3/8 9.5 1 0.700 17.8 0.23 0.10 6.0 152.4 1500 103.4 HY 500 Y
7284-381050 3/8 9.5 1 0.700 17.8 0.23 0.10 6.0 152.4 1500 103.4 HY 50 N
7284-381075 3/8 9.5 1 0.700 17.8 0.23 0.10 6.0 152.4 1500 103.4 HY 75 N
7284-381100 3/8 9.5 1 0.700 17.8 0.23 0.10 6.0 152.4 1500 103.4 HY 100 N
7284-501 1/2 12.7 1 0.969 24.6 0.37 0.17 7.0 177.8 1000 68.9 7661 500 Y
7284-501050 1/2 12.7 1 0.969 24.6 0.37 0.17 7.0 177.8 1000 68.9 7661 50 Y
7284-501100 1/2 12.7 1 0.969 24.6 0.37 0.17 7.0 177.8 1000 68.9 7661 100 N
7284-751 3/4 19.1 1 1.219 31.0 0.50 0.23 9.5 241.3 1000 68.9 HY 500 Y
7284-751050 3/4 19.1 1 1.219 31.0 0.50 0.23 9.5 241.3 1000 68.9 HY 50 Y
7284-751075 3/4 19.1 1 1.219 31.0 0.50 0.23 9.5 241.3 1000 68.9 HY 75 N
7284-751100 3/4 19.1 1 1.219 31.0 0.50 0.23 9.5 241.3 1000 68.9 HY 100 Y
7284-1001050 1 25.4 1 1.469 37.3 0.69 0.31 12.0 304.8 1000 68.9 7661 50 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
