Water

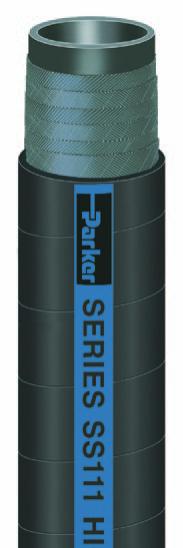

High Pressure Water Jetting Hose
Series SS111
Series SS111 is a heavy duty jetting hose for slurries and water. Te hose construction
provides high pressure, high volume fow for cleanup and washdown applications, and the
SBR cover is resistant to abrasion and weathering.
Tube:
Black SBR
Reinforcement:
Multiple textile plies
Cover:
Black SBR; wrapped fnish
Temp. Range:
-40°F to +180°F (-40°C to +82°C)
Brand Method:
Black text on blue stripe
Brand Example:
PARKER SERIES SS111 HIGH PRESSURE WATER JETTING XXX PSI WP
MADE IN USA
Design Factor:
4:1
Industry Standards:
None applicable
Applications:
• Slurries, water
• Cable cover, cleaning, stripping, washdown
• Construction, general industrial, oil feld, shipyards
Vacuum:
Not recommended
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SS111-2000
2 50.8 6 2.813 71.4 1.13 0.51 800 55.2
*
100
N
SS111-2500
2-1/2 63.5 6 3.313 84.2 1.37 0.62 800 55.2
*
100
N
SS111-3000
3 76.2 6 3.813 96.8 2.42 1.10 800 55.2
*
100
Y
SS111-4000
4 101.6 6 4.813 122.2 3.10 1.41 800 55.2
*
100
Y
SS111-5000
5 127.0 6 5.813 147.6 3.77 1.71 500 34.5
*
100
N
SS111-6000
6 152.4 8 7.000 177.8 5.23 2.37 500 34.5
*
100
Y
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
