Water
Lightweight High Pressure
Water Jetting Hose

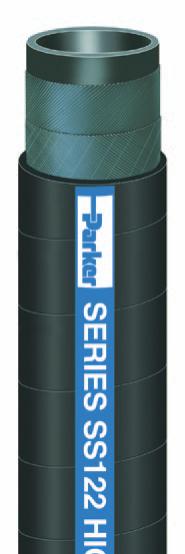

Series SS122
Series SS122 is a lightweight, high pressure, high volume water jetting hose for cleaning,
stripping and washdown applications. Te SBR cover is resistant to abrasion and
weathering.
Tube: Black SBR
Reinforcement: Multiple textile plies
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SS122 HIGH PRESSURE JETTING HOSE XXX PSI WP
MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Slurries, water
• Cleaning, stripping, washdown
• Construction, general industrial, oil feld, shipyards
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SS122-1250 1-1/4 31.8 2 1.688 42.9 0.49 0.22 500 34.5 * 100 Y
SS122-1500 1-1/2 38.1 2 1.938 49.2 0.60 0.27 500 34.5 * 100 Y
SS122-2000 2 50.8 2 2.500 63.5 0.96 0.44 500 34.5 * 100 Y
SS122-2500 2-1/2 63.5 2 3.000 76.2 1.15 0.52 500 34.5 * 100 Y
SS122-3000 3 76.2 2 3.500 88.9 1.36 0.62 500 27.6 * 100 N
SS122-4000 4 101.6 2 4.500 114.3 1.75 0.79 300 20.7 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
