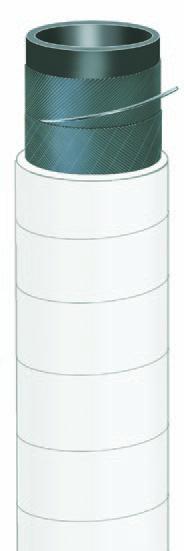

Hardwall Furnace Door Coolant Hose
Series 7386
Series 7386 is an industrial cooling/water suction hose for furnaces in foundries, glassworks,
steel mills and other worksites that require a hose to withstand extreme external temper-
atures. Te hose construction incorporates a wire helix that provides full suction capability,
kink resistance, and a durable, heat resistant aramid cover that withstands steel splashes
and external heat radiation to 572°F (300°C). Series 7386 is available in 200-foot continuous
lengths.
Tube: Black SBR
Reinforcement: Multiple textile plies with wire helix
Cover: Off-white aramid fabric; wrapped fnish
Temp. Range: Internal: -20°F to +212°F (-29°C to +100°C)
External: to +572°F (+300°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Hot water
• Furnaces and industrial cooling systems
• Foundries, glassworks, steel mills
Vacuum: Full
Compare to: Thermoid Furnace Door
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7386-0500 1/2 12.7 2 0.870 22.1 0.25 0.11 3.0 76.2 150 10.3 * 100 N
7386-0750 3/4 19.1 2 1.143 29.0 0.38 0.17 4.0 101.6 150 10.3 * 100 N
7386-1000 1 25.4 2 1.460 37.1 0.54 0.24 5.0 127.0 150 10.3 * 100 N
7386-1250 1-1/4 31.8 2 1.713 43.5 0.65 0.29 6.0 152.4 150 10.3 * 100 N
7386-1500 1-1/2 38.1 2 1.938 49.2 0.83 0.38 7.0 177.8 150 10.3 * 100 N
7386-2000 2 50.8 2 2.520 64.0 1.17 0.53 8.0 203.2 150 10.3 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
