Specialty
Softwall Furnace Door Coolant Hose
Nonconductive

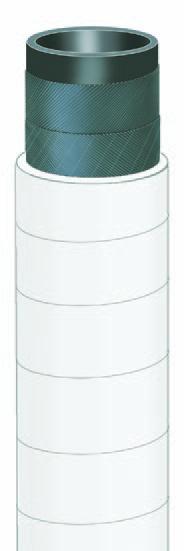

Series 7385
Series 7385 is an industrial cooling/water hose for furnaces in foundries, glassworks, steel
mills and other worksites that require a hose to withstand extreme external temperatures.
Te durable, heat resistant aramid cover withstands steel splashes and external heat
radiation to 572°F (300°C). Te hose construction is electrically nonconductive with a
minimum resistance of one megaohm per inch at 1000 volts DC. Series 7385 is available in
200-foot continuous lengths.
NOTE: Te user must determine if the hose is suitable for applications subject to electrical
hazard. Contact Parker for additional information.
Tube: Black SBR
Reinforcement: Multiple textile plies
Cover: Off-white aramid fabric; wrapped fnish
Temp. Range: Internal: -20°F to +212°F (-29°C to +100°C)
External: to +572°F (+300°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Hot water
• Furnaces and industrial cooling systems
• Foundries, glassworks, steel mills
Vacuum: Not recommended
Compare to: Kuriyama Furnace Door Coolant; Veyance Plicord Furnace Door
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7385-0500 1/2 12.7 2 0.969 24.6 0.33 0.15 5.0 127.0 150 10.3 * 100 Y
7385-0750 3/4 19.1 2 1.260 32.0 0.49 0.22 6.0 152.4 150 10.3 * 100 Y
7385-1000 1 25.4 2 1.442 36.6 0.51 0.23 8.0 203.2 150 10.3 * 100 Y
7385-1250 1-1/4 31.8 2 1.718 43.6 0.66 0.30 9.0 228.6 150 10.3 * 100 Y
7385-1500 1-1/2 38.1 2 2.135 54.2 1.11 0.50 12.0 304.8 150 10.3 * 100 Y
7385-2000 2 50.8 4 2.679 68.1 1.38 0.63 24.0 609.6 150 10.3 * 100 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
