Air & Multipurpose
GST® II
General Service Hose
Series 7031(R) (Green), Series 7057 (Blue),

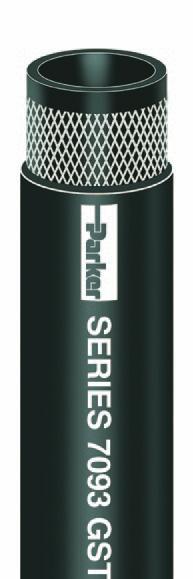

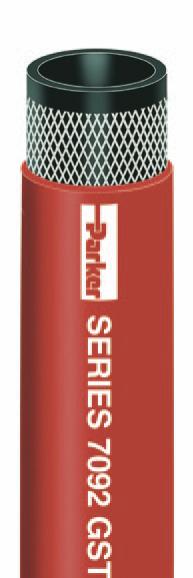

Series 7092 (Red), Series 7093 (Black), and
Series 7096 (Yellow)
GST® II hose is a versatile general purpose hose designed to handle air,
mild chemicals and water. Te hose construction incorporates a tube that
is compatible with light oil mists found in air tool lubricating systems, and
the multiple plies of textile reinforcement provide fexibility. Te cover is
resistant to abrasion, heat and ozone, and is available in multiple standard
colors for color-coded identifcation.
NOTE:Do not with use with oil or refned fuel.
Tube: Black EPDM; ARPM Class C oil resistance
Reinforcement: Multiple textile plies
Cover: Black, blue, green, red, yellow EPDM; smooth fnish
Temp. Range: -40°F to +212°F (-40°C to +100°C)
Brand Method: White ink on black, blue, green, red hose;
black ink on yellow hose
Brand Example: PARKER (SERIES) GST ® II (ID) XXX PSI MAX WP
MADE IN USA (DATE CODE)
Design Factor: 4:1
Industry Standards: ARPM Class C oil resistant tube; ARPM IP-7 (7031R only)
Applications: • Air (including oil mist), mild chemicals, water
• Agriculture, construction, general industrial
Vacuum: Not recommended
Compare to: Boston Bosfex A/W; Gates Adapta Flex; Thermoid
Valufex GS; Veyance Horizon General Purpose
Packaging: Reels; cartons
(Continued on the following page)
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
Other cover colors available:
7031 (Green)
7057 (Blue)
7096 (Yellow)
