Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
PVC
NEXBRAID
®
PW

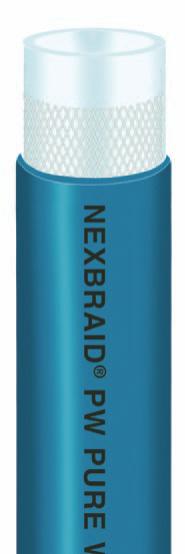

PW Potable Water By-Pass Hose
FDA, ANSI /NSF 61 Compliant Tube Compound
Series 128
Series 128 is a versatile, fexible potable water transfer hose. Te thick wall is kink resistant
and 25% lighter than comparable rubber hose. Te abrasion and ultraviolet light resistant
blue opaque cover inhibits algae growth and is available with a sunlight barrier layer. Its
smooth tube protects the integrity of water, does not impart taste or odor, and it is suitable
for deionized water. Since Series 128 hose is much easier to couple, install and remove than
polyethylene pipe, it is the preferred choice for temporary water supply and bypass lines
where service has been curtailed due to construction.
Tube:
Clear/blue tint PVC
Reinforcement:
Multiple textile plies
Cover:
Blue PVC; smooth fnish
Temp. Range:
-13°F to +150°F (-25°C to +65°C)
Working pressures are at +68°F (+20°C) ambient temperature. Higher
temperatures reduce the available working pressure. See temperature/
pressure chart on page 445.
Brand Method:
Black ink
Brand Example:
NEXBRAID
®
PW PURE WATER HOSE BY PARKER NEXGEN
®
(P/N) (ID)
ANSI/NSF-61 COMPLIANT TUBE MATERIAL MAX WP 200 PSI AT 68F
(20C) CANADA (DATE CODE)
Industry Standards:
• Certifcation by NSF that the tube material conforms to the
requirements of NSF Standard 61 for a maximum surface area
to volume ratio of 200 square inches per liter
• Tube compound is California Proposition 65 compliant
Applications:
• Potable water, pure water
• Bottled water plants, water analysis collection
• Municipal water supply temporary by-pass connections
Vacuum:
Not rated
Packaging:
Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
128-10006200
5/8 15.9 2 0.931 23.6 0.21 0.10 250 17.2
*
200
N
128-12006200
3/4 19.1 2 1.125 28.6 0.59 0.27 250 17.2
*
200
N
128-12016200
3/4 19.1 2 1.030 26.2 0.22 0.10 150 10.3
*
300
N
128-16006200
1 25.4 2 1.375 34.9 0.77 0.35 200 13.8
*
200
N
128-20006100
1-1/4 31.8 2 1.630 41.4 0.49 0.22 150 10.3
*
100
N
128-24006100
1-1/2 38.1 2 1.960 49.8 0.71 0.32 100
7.0
*
100
N
128-32006100
2 50.8 2 2.490 63.3 0.97 0.44
75
5.2
*
100
N
* Couplings:
Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
WARNINGS!
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/pressure chart on
page 445.
!
!
