PVC
NEXPRIME T
Fuel Grade Tubing
Series 115

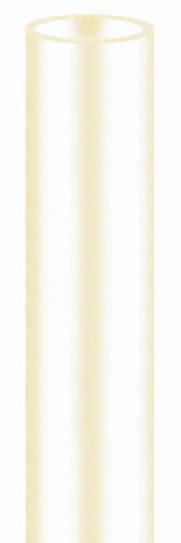

Series 115 is a silicone-free, fuel resistant PVC tubing for small engine fuel feed lines where
the liquid is normally in continuous contact in the line.
NOTE: Do not use in “under the hood” automotive applications.
Tube: Amber tint PVC; 70A durometer
Temp. Range: +25°F to +150°F (-5°C to +65°C)
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method: Not branded
Industry Standards: None applicable
Applications: • Fuel feed lines
• General industrial, lawn and garden
Packaging: Cartons
Part
Number
ID
(in)
ID
(mm)
Wall
(in)
Wall
(mm)
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
115-02040102 1/8 3.2 0.062 1.6 1/4 6.4 1.90 0.90 65 4.5 100 N
115-03050102 3/16 4.8 0.062 1.6 5/16 8.0 2.50 1.10 55 3.8 100 N
115-04060102 1/4 6.4 0.062 1.6 3/8 9.5 3.20 1.50 55 3.8 100 N
115-06080102 3/8 9.5 0.062 1.6 1/2 12.7 4.50 2.00 45 3.1 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
! !
WARNING! Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/
pressure chart on page 445.
!
