244
Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
PVC
NEXCOL HSG

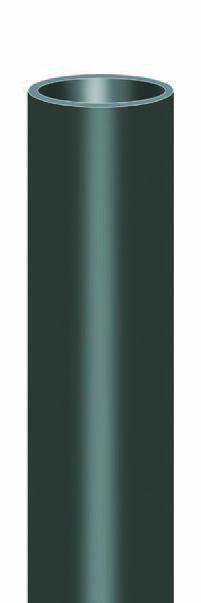

Aeration Tubing
Series 106 HSG
Series 106 HSG PVC tubing incorporates a heavy, thick wall that allows the tube to sink in
water when flled with air, staying in place without additional weight attachments. Te air
is introduced through the tube and circulates to keep the water fresh and free of unwanted
build-up.
Tube:
Black PVC; 65A durometer
Temp. Range:
-30°F to +140°F (-34°C to +60°C).
Working pressures are at +68°F (+20°C). Higher temperatures reduce the
available working pressure. See temperature/pressure chart on page 445.
Brand Method:
Not branded
Industry Standards:
None applicable
Applications:
• Ice clearing
• Pond aeration
• Waste water lagoon treatment
• Water recirculation
Packaging:
Coils
Series 106 NEXCOL HSG Aeration Tubing – Highly Flexible Premium Grade
Part
Number
ID
(in)
ID
(mm)
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
106-00068055
.575
14.6
1.155
29.3
25.00 11.30
60
3.4
50
N
106-00068100
.575
14.6
1.155
29.3
50.00 22.70
50
3.4
100
N
106-00118055
3/8
9.5
0.735
18.7
10.20
4.60
50
3.4
50
N
106-00118105
3/8
9.5
0.735
18.7
20.30
9.20
50
3.4
100
N
106-00148055
1/2
12.7
1.080
27.4
23.30 10.60
50
3.4
50
N
106-00148100
1/2
12.7
1.080
27.4
46.50 21.10
50
3.4
100
N
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
Series 106 NEXCOL HSG Aeration Tubing – Economy Grade
Part
Number
ID
(in)
ID
(mm)
OD
(in)
OD
(mm)
Approx
Wt
Per Pkg
(lbs)
Approx
Wt
Per Pkg
(kgs)
Max
Rec WP
@ 68°F
(psi)
Max
Rec WP
@ 20°C
(bar)
Std Pack
Qty
(ft)
Stock
Status
**
(USA)
106-00208055
3/8
9.5
0.685
17.4
10.2
4.60
50
3.4
50
N
106-00208105
3/8
9.5
0.685
17.4
20.3
9.20
50
3.4
100
N
106-00258100
1/2
12.7
1.101
28.0
48.00 21.80
50
3.4
100
N
106-00258501
5/8
15.9
1.135
28.8
280.5 127.20
50
3.4
500
N
106-00268100
1/2
12.7
1.101
28.0
24.00 10.90
50
3.4
50
N
**
Stock:
“Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
!
!
WARNING!
Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure. See temperature/
pressure chart on page 445.
!
