Petroleum – LPG
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
7132XTC-25354 1/4 6.4 4 0.610 15.5 0.14 0.06 2.5 63.5 350 24.1 7661 750 Y
7132XTC-38354 3/8 9.5 4 0.760 19.3 0.21 0.10 3.5 88.9 350 24.1 HY 650 N
7132XTC-50354 1/2 12.7 4 0.937 23.8 0.30 0.14 4.5 114.3 350 24.1 7661 500 N
7132XTC-75354 3/4 19.1 4 1.250 31.8 0.48 0.22 6.5 165.1 350 24.1 HY 350 Y
7132XTC-1000 1 25.4 4 1.500 38.1 0.63 0.29 7.5 190.5 350 24.1 7661 250 Y
7132XTC-1000100 1 25.4 4 1.500 38.1 0.63 0.29 7.5 190.5 350 24.1 7661 1 x 100 Y
7132XTC-1000125 1 25.4 4 1.500 38.1 0.63 0.29 7.5 190.5 350 24.1 7661 1 x 125 Y
7132XTC-1000150 1 25.4 4 1.500 38.1 0.63 0.29 7.5 190.5 350 24.1 7661 1 x 150 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
Series 7132XTC – X-TREME™ Low Temperature LP Gas Hose, UL21,
CGA Type I (Continued)
WARNINGS!
„ Use only with couplings qualifed by Parker. Do not use with male swivel couplings or other couplings containing o-rings, which may dry
out, crack and fail over time.
„ When using this product in a mobile application such as delivery or service vehicles, the inspection procedures detailed in DOT regulation
49CFR 180.416 must be strictly adhered to.
!

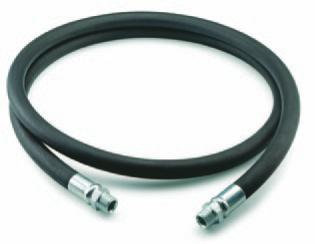

LP Gas Hose – Factory Assemblies
UL21 /CGA Type I – Low Temperature
Series 7132XTC
Crimped-on Carbon Steel Couplings, Rigid Male NPT Thread x Rigid Male NPT Thread
Cartons
Factory assemblies (3/4" and larger) are Department of Transportation (DOT) pressure-tested, one of the fttings is etched
with a unique DOT certifcation number, and a document incorporating the identical certifcation number accompanies each
assembly. Metal DOT identifcation bands are also available/attached at an additional charge per customer request. Contact
Parker.
Part
Number
ID
(in)
ID
(mm)
Length
(ft)
Length
(mtrs)
Approx
Wt
(lbs/ea)
Approx
Wt
(kg/ea)
Std Pack
Qty
(ea)
Stock
Status
**
7132XTCLAR16MP-1200 1 25.4 100 30.48 61.65 27.96 1 Y
7132XTCLAR16MP-1500 1 25.4 125 38.10 76.71 34.80 1 Y
7132XTCLAR16MP-1800 1 25.4 150 45.70 91.78 41.63 1 Y
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
