Parker Industrial Hose Customer Service
866 810 HOSE (4673) 800 242 HOSE (4673)
Strongsville, OH
South Gate, CA
Eastern USA
Western USA
www.safehose.com
e-mail: indhose@parker.com
Petroleum – LPG
X-TREME
™
Low Temperature LP Gas Hose
UL21, CGA Type I

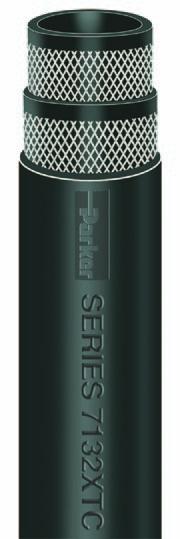

Series 7132XTC
Series 7132XTC is a fexible, lightweight, low temperature liquefed petroleum gas (LPG)/propane
delivery and transfer hose.Te hosemeets all Underwriters Laboratories (UL21) and Canadian
Gas Association (CGA Type I) requirements.Te construction stays fexible to -65°F (-53°C) and
incorporates multiple textile plies of reinforcement for fexibility and kink resistance.Te perforated
cover is resistant tomild chemicals, oil and ozone. Series 7132XTC is available in long lengths on
reels, long cut lengths and factory-tested assemblies from stock in popular confgurations.
NOTE:
Refer to the Safety and Technical section of this catalog for safety, handling and use
information.
Series 7132XTC and DOT:
LPG hose assemblies installed on on-road vehicles must meet
Department of Transportation (DOT) requirements. Factory assemblies (3/4" and larger) are
pressure tested, one of the fttings is etched with a unique DOT certifcation number, and a
document incorporating the identical certifcation number accompanies each shipment. Metal
DOT identifcation bands are also attached at an additional charge per customer request.
Contact Parker.
Series 7132XTC and Natural Gas:
Te molecules of natural gas are small, enhancing their
ability to permeate through standard rubber hose constructions. Te permeation process is
more rapid as the working pressure increases, and natural gas accumulates with potentially
dangerous consequences. Series 7132XTC may be used for natural gas service, but ONLY under
ALL of the following conditions:
• Te application must be in a well-ventilated environment: Outdoors, or indoors with
signifcant continuous air movement.
• Series 7132XTC is not to replace fxed/rigid pipewhere thatmaterial ismore appropriate due to
reduced permeation and overall strength and durability. Use rigid pipe, non-permeable tubing or
hosewith barrier constructions to convey natural gas whenever possible.
Series 7132XTC and Compressed Natural Gas (CNG):
Series 7132XTC is not for use in any
CNG application, including fuel dispensing, on-board vehicle fuel lines, or fuel transfer.
Series 7132XTC and Anhydrous Ammonia (NH
3
):
Series 7132XTC is not for use with
anhydrous ammonia.
Tube:
Black nitrile
Reinforcement:
Multiple textile plies
Cover:
Black chloroprene; perforated smooth fnish
Temp. Range:
-65°F to +180°F (-53°C to +82°C) (The hose construction is capable of this
rating, but LP Gas should NEVER be conveyed over 140°F/60°C)
Brand Method:
Impression
Brand Example:
PARKER SERIES 7132XTC X-TREME CGA TYPE I CAUTION - LP GAS
HOSE (-65°F) MH6737 C U
®
US ISSUE NO. XXXXX 350 PSI MAX WP
MADE IN USA B2 (DATE CODE)
Design Factor:
5:1
Industry Standards:
UL21; CAN/CGA-8.1-M86 Type I; optional DOT factory hose assembly testing
and marking also available for sizes smaller than 3/4". Contact Parker.
Applications:
• LP gas/propane
• Low temperature delivery, transfer
• Agriculture, commercial and residential heating, construction, general industrial
Vacuum:
Not recommended
Compare to:
Thermoid Polarfex
Packaging:
Cartons, coils, reels
R
(Continued on the following page)
