Petroleum – Dispenser
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7124-631A 5/8 15.9 1 0.969 24.6 0.35 0.16 3.0 76.2 150 10.3 * 500 Y
7124-751A 3/4 19.1 1 1.100 28.2 0.42 0.19 4.0 101.6 150 10.3 * 500 Y
7124-1001A 1 25.4 1 1.340 34.0 0.50 0.23 5.0 127.0 150 10.3 * 500 Y
Factory Assemblies: Available from stock in popular confgurations that meet National Fire Protection Association (NFPA) 30A
requirements. Contact Parker Customer Service.
* Couplings: Bulk gasoline dispenser hose couplings are not sold separately. Refer to CrimpSource at www.safehose.com for other
coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

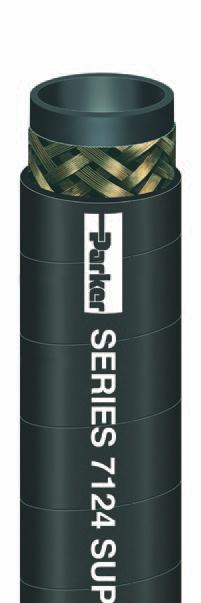

SUPER-FLEX® 2000
Semi-Hardwall Gasoline Dispenser Hose
UL330/ULC
Series 7124
Series 7124 is designed to dispense or transfer refned fuels such as biodiesel (to B20
in dedicated service), diesel, ethanol (see frst note), gasoline and oil. Te hose meets
all Underwriters Laboratories/Canada (UL330/ULC) requirements. Te semi-hardwall
construction incorporates steel wire braided reinforcement that reduces meter creep and
provides superior strength, crush-resistant durability, kink resistance and a path to conduct
a static electrical charge to ground. Te cover is resistant to abrasion, cuts, oil and ozone,
and will not mar the fnish of a vehicle. Series 7124 is suitable for use with reeling devices or
applications where retractable cables are employed.
NOTES: • Not UL listed for E85 service.
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information.
Tube: Black nitrile
Reinforcement: One wire braid
Cover: Black CPE; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: White ink
Brand Example: PARKER SERIES 7124 SUPER-FLEX® 2000 GASOLINE HOSE (UL)
LISTED 655N MADE IN USA MH530 (DATE CODE)
Design Factor: 4:1
Industry Standards: UL330/ULC; NFPA 30A and UL30N4 (factory assemblies)
Applications: • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
• Gasoline dispensers and pumps
Vacuum: Not recommended
Compare to: Thermoid Pumpfex II Hardwall, Veyance Flexsteel Hardwall
Packaging: Reels
WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Do not use Parker gasoline dispenser hose for aircraft fueling applications. Use only API/NFPA qualifed hose for aircraft fueling
applications.
!
