P
etroleum – Dispenser
Part
Number
ID
(in)
ID
(mm)
Reinf
Braids
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7280-632A 5/8 15.9 2 1.031 26.2 0.39 0.18 3.0 76.2 150 10.3 * 500 Y
7280-752A 3/4 19.1 2 1.172 29.8 0.47 0.21 4.0 101.6 150 10.3 * 500 Y
7280-1002A 1 25.4 2 1.453 36.9 0.64 0.29 5.0 127.0 150 10.3 * 500 Y
Factory Assemblies: Available from stock in popular confgurations that meet National Fire Protection Association (NFPA) 30A
requirements. Contact Parker Customer Service.
* Couplings: Bulk gasoline dispenser hose couplings are not sold separately. Refer to CrimpSource at www.safehose.com for other
coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.

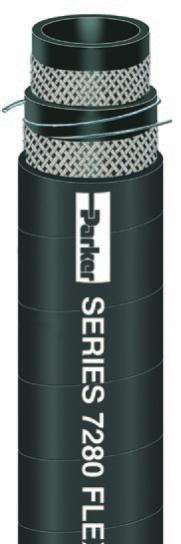

FLEX-EVER™ 2000
Hardwall Gasoline Dispenser Hose
UL330/ULC
Series 7280
Series 7280 is designed to dispense or transfer refned fuels such as biodiesel (to B20 in
dedicated service), diesel, ethanol (see frst note), gasoline and oil. Te hose meets all
Underwriters Laboratories/Canada (UL330/ULC) requirements. Te hardwall construction
incorporates a dual wire helix that reduces meter creep and provides full suction capability,
kink resistance, and a path to conduct a static electrical charge to ground. Te cover is
resistant to abrasion, cuts, oil and ozone, and will not mar the fnish of a vehicle. Series
7280 is suitable for use with reeling devices or applications where retractable cables are
employed.
NOTES: • Not UL listed for E85 service.
• Refer to the table on pages 213-214 for fuel compatibility and service conditions.
• Refer to the Safety and Technical section of this catalog for safety, handling and
use information.
Tube: Black nitrile
Reinforcement: Multiple textile braids with dual wire helix
Cover: Black CPE; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: White ink
Brand Example: PARKER SERIES 7280 FLEX-EVER™ 2000 GASOLINE HOSE (UL)
LISTED 655N MH530 MADE IN USA B5 (DATE CODE) PN16 TRbF131T.2
Design Factor: 4:1
Industry Standards: UL330/ULC; NFPA 30A and UL30N4 (factory assemblies)
Applications: • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
• Gasoline dispensers and pumps
Vacuum: Full
Compare to: Gates Curb Pump 124HW; Veyance BC Gasoline
Packaging: Reels
WARNINGS!
„ Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working
pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„ Do not use Parker gasoline dispenser hose for aircraft fueling applications. Use only API/NFPA qualifed hose for aircraft fueling
applications.
!
