Oil Field
BS&W™
Oil Field Suction / VacuumHose

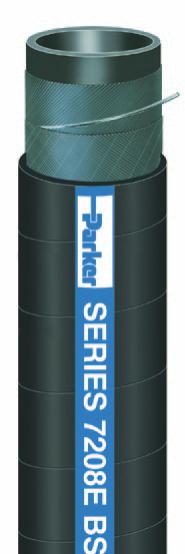

Series 7208E
Series 7208E is a fexible, lightweight suction and discharge hose designed to handle brine,
crude oil, mild chemicals, petroleum waste, sediments, sludge, slurries and water in harsh
oil feld bottom sediment and waste pit recovery applications. Te hose construction
incorporates a wire helix that provides full suction capability, kink resistance, and a path to
conduct a static electrical charge to ground. Te nitrile/SBR cover is resistant to abrasion,
oil and weathering. Series 7208E is available in 200-foot continuous lengths.
NOTE: Do not use with refned oil or fuel.
Tube: Black nitrile/SBR
Reinforcement: Multiple textile plies with wire helix
Cover: Black nitrile/SBR; wrapped fnish
Temp. Range: -22°F to +185°F (-30°C to +85°C)
Brand Method: White text on blue stripe
Brand Example: PARKER SERIES 7208E BS&W™ OIL FIELD SUCTION HOSE
150 MAX PSI WP
Industry Standards: None applicable
Applications: • Brine, crude oil, mild chemicals, petroleum waste, sediments, sludge,
slurries, water
• Oil feld waste recovery, general industrial
Vacuum: Full
Compare to: Jason Tupelo 4677; Kuriyama T601AA; Texcel Tex-Vac; Veyance Flextra
Oilfeld
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
7208E-2000200 2 50.8 2 2.440 62.0 1.04 0.47 8.0 203.2 150 10.3 * 200 Y
7208E-3000200 3 76.2 2 3.540 89.9 2.18 0.99 12.0 304.8 150 10.3 * 200 Y
7208E-4000200 4 101.6 2 4.570 116.1 3.23 1.47 16.0 406.4 150 10.3 * 200 Y
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
