Material Handling /Dredge
Hot Tar & Asphalt Hose
FKM Tube

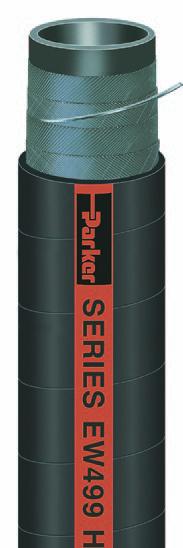

Series EW499
CustomMade Hose
Series EW499 is a premium suction and discharge hose for high temperature materials
such as hot asphalt, glue, oil, tar and wax to 350°F (177°C) continuous service. Te hose
construction incorporates a premium FKM tube and a wire helix that provides full suction
capability, kink resistance and a path to conduct a static electrical charge to ground. Te
cover is resistant to abrasion, heat, oil and weathering.
NOTE: Customized versions of this product are available. Contact Parker. For other hot tar
and asphalt hoses, refer to Series 7204 and SW387.
Tube: Black FKM
Reinforcement: Multiple plies of tire cord with wire helix
Cover: Black synthetic rubber; wrapped fnish
Temp. Range: -40°F to +350°F (-40°C to +177°C)
Brand Method: Black text on red stripe
Brand Example: PARKER SERIES EW499 HOT TAR & ASPHALT HOSE
Design Factor: 5:1
Industry Standards: None applicable
Applications: • Hot asphalt, glue, oil, tar
• Transfer between barges, storage tanks and marine vessels
Vacuum: Full
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Built-in nipples; fanges; contact Parker
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
EW499-4000 4 101.6 4 5.250 133.3 5.50 2.49 28.0 711.2 200 13.8 100
EW499-6000 6 152.4 6 7.500 190.5 9.90 4.50 42.0 1066.8 200 13.8 100
EW499-8000 8 203.2 8 9.875 250.8 15.30 6.90 54.0 1371.6 200 13.8 50
EW499-10000 10 254.0 8 12.000 304.8 20.80 9.43 66.0 1676.4 200 13.8 50
