Material Handling /Dredge

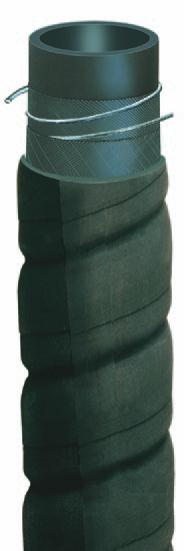

Corrugated Industrial VacuumHose
1/8" Natural Rubber Tube
Series EWC888
CustomMade Hose
Series EWC888 is a fexible, light duty suction/vacuum hose for general industrial
applications. Te 1/8" natural rubber tube provides abrasion resistance, and the dual wire
helix provides full suction capability, kink resistance and a path to conduct a static charge
to ground. Te corrugated SBR cover provides fexibility and is resistant to abrasion, cuts,
scufs and weathering.
NOTE: Other customized versions of this product are available. Contact Parker.
Tube: 1/8" Black natural rubber
Reinforcement: Multiple plies of tire cord with dual wire helix
Cover: Black SBR; corrugated wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Not branded
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris, water
• Construction, general industrial
Vacuum: Full
Packaging: Lengths or coils in bales, crates or slat packs
Couplings: Contact Parker
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Max
Lg
(ft)
EWC888-5000 5 127.0 2 5.813 147.7 3.80 1.72 20.0 508.0 75 5.2 100
EWC888-6000 6 152.4 2 6.875 174.6 4.80 2.18 24.0 609.6 75 5.2 100
EWC888-8000 8 203.2 2 8.938 227.0 7.00 3.18 36.0 914.4 75 5.2 100
EWC888-10000 10 254.0 2 11.000 179.4 10.30 4.67 48.0 1219.2 50 3.4 50
EWC888-12000 12 304.8 2 13.125 333.4 13.20 6.00 60.0 1524.0 40 2.8 50
