Material Handling /Dredge
Material Handling Hose
Suction / Vacuum
1/4" Natural Rubber Tube
Series SW336

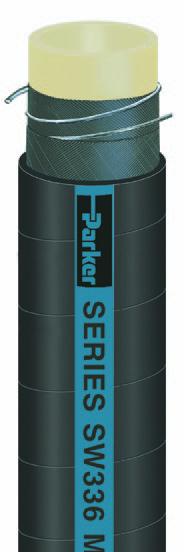

Series SW336 is a durable material suction and discharge hose for highly abrasive materials.
Te 1/4" natural rubber tube provides abrasion resistance, and the dual wire helix provides
full suction capability and kink resistance.
NOTE: For larger diameter hose, refer to Series EW336. For corrugated construction,
contact Parker.
Tube: 1/4" Tan natural rubber
Reinforcement: Multiple textile plies with dual wire helix
Cover: Black SBR; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Black text on blue stripe
Brand Example: PARKER SERIES SW336 MATERIAL HANDLING HOSE XXX PSI WP
1/4" TUBE MADE IN USA
Design Factor: 4:1
Industry Standards: None applicable
Applications: • Abrasive materials, debris
• Construction, general industrial, mining
Vacuum: Full
Compare to: Boston Sabertooth; Diversifex; Gates 688SB; Veyance Plicord HD
Vacuum
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Min
Bend
Rad
(in)
Min
Bend
Rad
(mm)
Max
Rec
WP
(psi)
Max
Rec
WP
(bar)
Std
Pack
Qty
(ft)
Stock
Status
**
SW336-3000 3 76.2 2 3.938 100.0 2.69 1.22 12.0 304.8 125 8.6 100 N
SW336-4000 4 101.6 2 5.000 127.0 4.00 1.81 18.0 457.2 125 8.6 100 Y
SW336-5000 5 127.0 2 6.000 152.4 5.35 2.43 25.0 635.0 110 7.6 100 Y
SW336-6000 6 152.4 2 7.063 179.4 7.09 3.22 30.0 762.0 110 7.6 100 N
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
