Food & Beverage
Food Discharge Hose
Natural Rubber Tube
FDA, PMO, USDA, 3-A

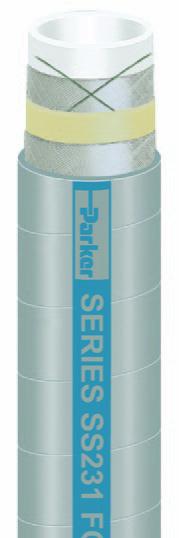

Series SS231
Series SS231 is a medium pressure discharge hose designed to handle dry abrasive
materials such as grains, granules, pellets and powders; and non-fatty and non-oily foods,
liquids, sanitary products and potable water in a variety of transfer applications. Te hose
is manufactured using polished stainless steel mandrels for an ultra-smooth, bacteria-free
tube that will not impart taste or odor, and is resistant to abrasion. Te natural rubber cover
is resistant to abrasion, mild chemicals and ozone. Series SS231 incorporates dual static
wires to conduct an electrical charge to ground.
Tube: White natural rubber
Reinforcement: Multiple textile plies with dual static wire
Cover: Gray natural rubber; wrapped fnish
Temp. Range: -40°F to +150°F (-40°C to +66°C)
Brand Method: Gray text on blue stripe
Brand Example: PARKER SERIES SS231 FOOD GRADE DISCHARGE 1/4" TUBE
XXX PSI WP MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Dry abrasive materials, four, grains, granules, pellets, powders, sugar
• Non-fatty and non-oily foods, liquids, milk, potable water, sanitary
products
• In-plant and tank transfer, delivery, transport
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std
Pack
Qty
(ft)
Stock
Status
**
SS231-2000 2 50.8 2 2.844 72.2 1.60 0.73 200 13.8 * 100 N
SS231-2500 2-1/2 63.5 2 3.344 84.9 1.92 0.87 200 13.8 * 100 N
SS231-3000 3 76.2 2 3.844 97.6 2.23 1.01 140 9.7 * 100 N
SS231-4000 4 101.6 2 4.844 123.0 2.88 1.31 120 8.3 * 100 Y
SS231-6000 6 152.4 2 6.844 173.8 4.27 1.94 110 7.6 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
