Food & Beverage
Brewers Discharge Hose
Chlorobutyl Tube
FDA, PMO, USDA, 3-A

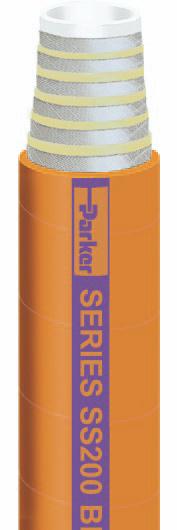

Series SS200
Series SS200 is a discharge hose designed to handle beer, non-fatty and non-oily foods,
liquids and potable water in brewery and winery transfer applications. Te hose is
manufactured using polished stainless steel mandrels for an ultra-smooth tube that will not
impart taste or odor, and is resistant to bacteria and microbes. Te EPDM cover is resistant
to abrasion, mild chemicals and ozone.
NOTE: Do not use in applications where a static charge may develop unless externally
grounded.
Tube: White chlorobutyl
Reinforcement: Multiple textile plies
Cover: Orange EPDM; wrapped fnish
Temp. Range: -40°F to +180°F (-40°C to +82°C)
Brand Method: Orange text on purple stripe
Brand Example: PARKER SERIES SS200 BREWERS HOSE MEETS FDA/3-A/USDA/PMO
REQUIREMENTS (3-A LOGO) 350 PSI WP MADE IN USA
Design Factor: 4:1
Industry Standards: FDA, PMO, USDA, 3-A
Applications: • Beer, liquids, milk, non-fatty and non-oily foods, potable water,
sanitary products, wine
• In-plant and tank transfer
• Delivery, transport
Vacuum: Not recommended
Packaging: Coils
Part
Number
ID
(in)
ID
(mm)
Reinf
Plies
OD
(in)
OD
(mm)
Approx
Wt
(lbs/ft)
Approx
Wt
(kg/ft)
Max
Rec WP
(psi)
Max
Rec WP
(bar)
Perm
Cplg
Rec
*
Std Pack
Qty
(ft)
Stock
Status
**
SS200-1500 1-1/2 38.1 4 2.375 60.3 1.33 0.60 350 24.1 * 100 Y
SS200-2000 2 50.8 6 3.000 76.2 1.91 0.87 350 24.1 * 100 N
SS200-2500 2-1/2 63.5 6 3.500 88.9 2.32 1.05 350 24.1 * 100 N
SS200-3000 3 76.2 6 4.125 104.8 3.05 1.38 350 24.1 * 100 N
SS200-4000 4 101.6 6 5.125 130.2 3.87 1.76 350 24.1 * 100 N
* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifcations.
** Stock: “Y” indicates stocked item; “N” indicates non-stocked item. Stock status subject to change. Contact Parker Customer Service.
Capped ends available upon request.
WARNING! Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the
maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
!
