Number Hose I.D. Hose O.D.
Working
Pressure
Minimum
Bend Radius Weight
Vacuum
Rating Parkrimp
Field
Attachable
inch mm inch mm psi MPa inch mm lbs/ft kg/m
inches
of Hg kPa 26 Series 21/23 Series
293-4 3/16 5 0.49 12,5 500 3,5 1/2 15 0.10 0,15 28 95
•
•
293-6 5/16 8 0.62 15,7 500 3,5 1 25 0.15 0,22 28 95
•
•
293-8 13/32 10 0.74 18,7 500 3,5 1-1/2 40 0.18 0,27 28 95
•
•
293-10 1/2 12,5 0.83 21,1 450 3,1 2 50 0.20 0,30 28 95
•
•
293-12 5/8 16 0.96 24,3 450 3,1 2-1/2 65 0.22 0,33 28 95
•
•
293-16 7/8 22 1.21 30,6 450 3,1 3-1/4 80 0.25 0,37 20 68
•
•
293

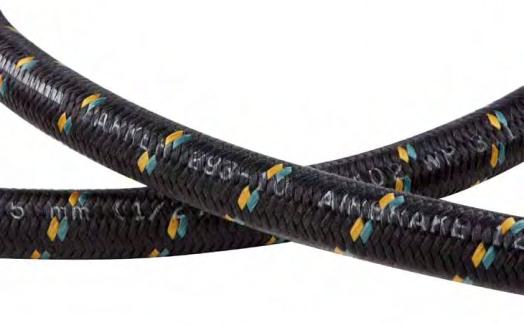

Transportation – Air Brake Hose
SAE J1402 AI / D.O.T. FMVSS 106 AI-AIR BRAKE
Application:
Petroleum base
hydraulic fuids and lubricating
oils, diesel fuels and antifreeze
solutions.
Inner Tube:
PKR
®
.
Reinforcement:
One fber braid.
Cover:
Abrasion resistant nylon
fber braid.
Temperature Range:
-58°F to
+302°F (-50°C to +150°C).
Fittings:
26 Series - pg. B-9.
21 Series - pg. B-151.
23 Series - pg. B-163.
Hg
Transportation Hose:
293
Transportation
Catalog 4400 US
A-46
293, 213, 266
Parker’s transportation hose selection has all your vehicle and equipment
applications covered – with industry-leading performance and value you can
count on. Meeting or exceeding specifcations, Parker’s offerings are available
in the sizes, pressure ratings, special designs and long-lasting durability your
hydraulic or pneumatic systems demand.
• See
Section B
for Field Attachable Assembly Instructions.
• See
Section C
for Parkrimp Assembly Instructions.
• Temperature Range of other media listed in
Section E.
