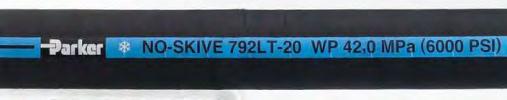

301LT, 772LT, 792LT
In extremely cold and usually remote areas, a hose burst or leak in a critical application
can cause expensive downtime and possible environmental issues. Selecting the right
hose for dependable, long-life performance in these applications is essential.
Parker’s family of low-temperature hoses are designed specifcally to excel in the
brutal operating conditions of extreme cold!
• Delivers superior performance in extreme cold conditions
• Rated as low as -70ºF (-57ºC)
• The choice for heavy construction equipment, side booms, mining equipment,
mobile equipment, arctic oil feld, snow grooming equipment, snow making
machinery and cold storage applications
• These No-Skive hoses use Parker’s standard 43, 71 and 79 Series fttings and
easy-to-use Parkrimp style crimping system
301LT
Low-Temperature NO-SKIVE
SAE 100R2 TYPE A, J1942 / USCG HF / DNV / ABS
Application: Petroleum base
hydraulic fuids and lubricating
oils.
Inner Tube: Synthetic rubber.
Reinforcement: Two braids
steel wire.
Cover: PKR Rubber.
Temperature Range: -67ºF to
+212ºF (-55ºC to +100ºC).
Fittings: 43 Series - pg. B-27.
Low Temp
Part
Number Hose I.D. Hose O.D.
Working
Pressure
Minimum
Bend Radius Weight Parkrimp
inch mm inch mm psi MPa inch mm lbs/ft kg/m 43 Series
301LT-4 1/4 6,3 0.59 15 5000 35,0 4 100 0.26 0,39 •
301LT-6 3/8 10 0.75 19 4000 28,0 5 130 0.37 0,55 •
301LT-8 1/2 12,5 0.88 22 3500 24,5 7 180 0.45 0,67 •
301LT-10 5/8 16 1.00 25 2750 19,2 8 200 0.52 0,77 •
301LT-12 3/4 19 1.16 29 2250 15,7 9-1/2 240 0.67 1,00 •
301LT-16 1 25 1.50 38 2000 14,0 12 300 1.00 1,49 •
• SeeSection Cfor Parkrimp Assembly Instructions.
• Temperature Range of other media listed inSection E.
Low Temperature Hose: 301LT Low Temperature Catalog 4400 US
A-44
